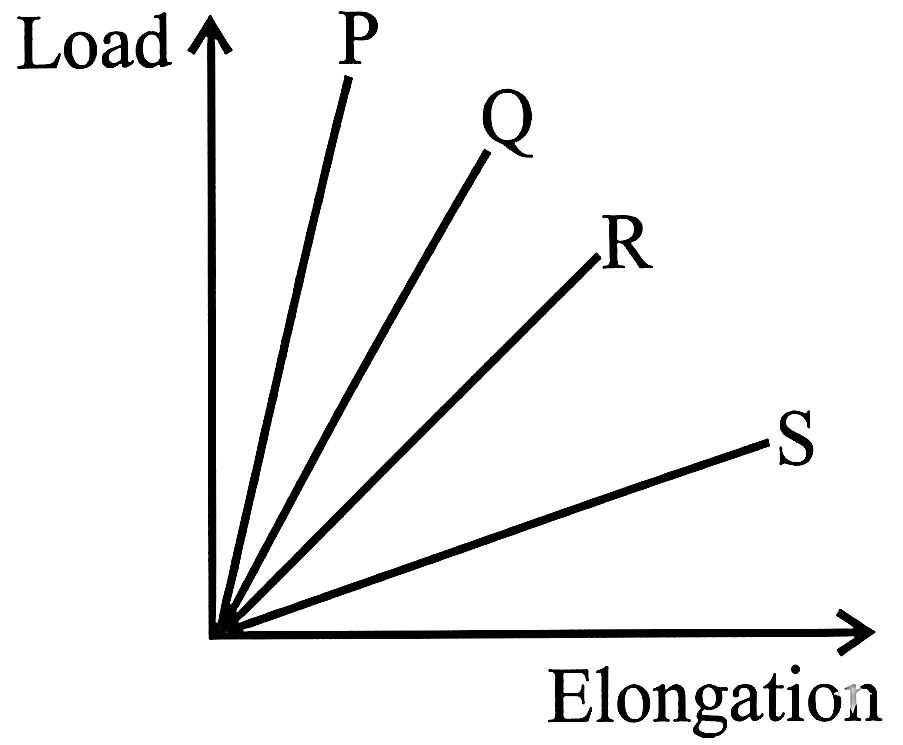

The load versus elongation graph for four wires is shown. The thinnest wire is
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
D
Slope
Slope
Area
A thinner wire will have a smaller cross-sectional area. Therefore, the thinnest wire will have the smallest slope in the Load-Elongation graph.
