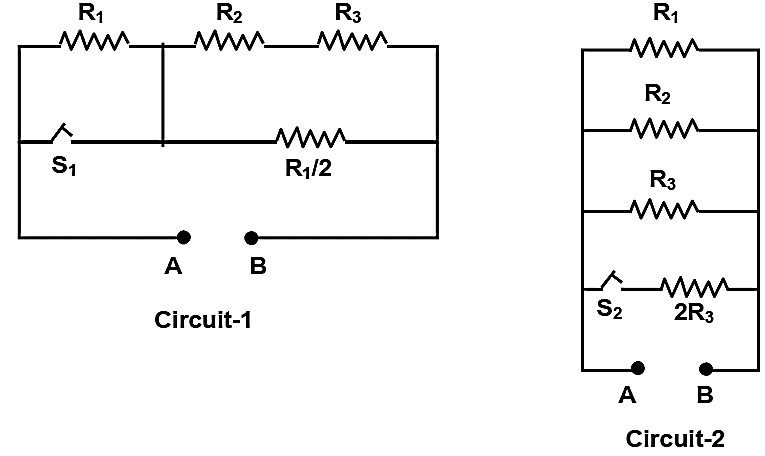

In Circuit-1 and Circuit-2 shown in the figures, R 1 = 1 ,R 2 = 2 and R 3 = 3 . P 1 and P 2 are the power dissipations in Circuit-1 and Circuit-2 when the switches S 1 and S 2 are in open conditions, respectively. Q 1 and Q 2 are the power dissipations in Circuit-1 and Circuit-2 when the switches Si and S 2 are in closed conditions, respectively.

Which of the following statement(s) is(are) correct?

A
When a voltage source of 6 V is connected across A and B in both circuits, P 1 < P 2 .
B
When a constant current source of 2 Amp is connected across A and B in both circuits, P 1 >P 2 .
C
When a voltage source of 6 V is connected across A and B in Circuit-1, Q 1 >P 1 .
D
When a constant current source of 2 Amp is connected across A and B in both circuits, Q 2 <Q 1 .

Share this question

WhatsApp

For Instagram sharing, use “Apps” on mobile or copy the link.

Text Solution

Verified by Experts

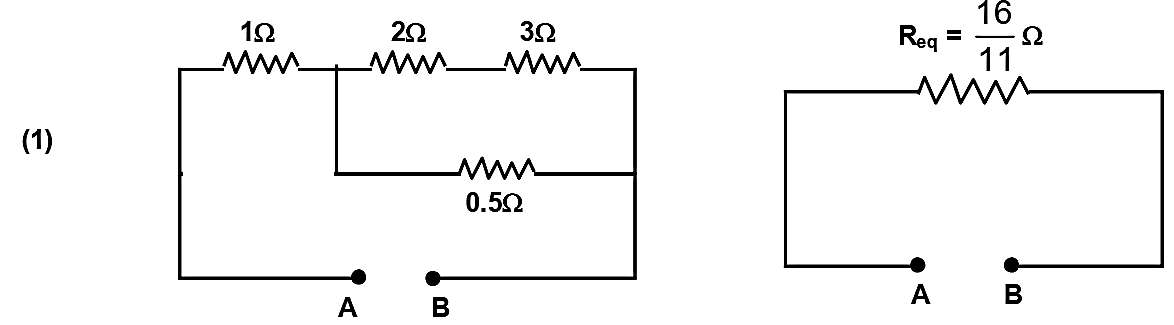

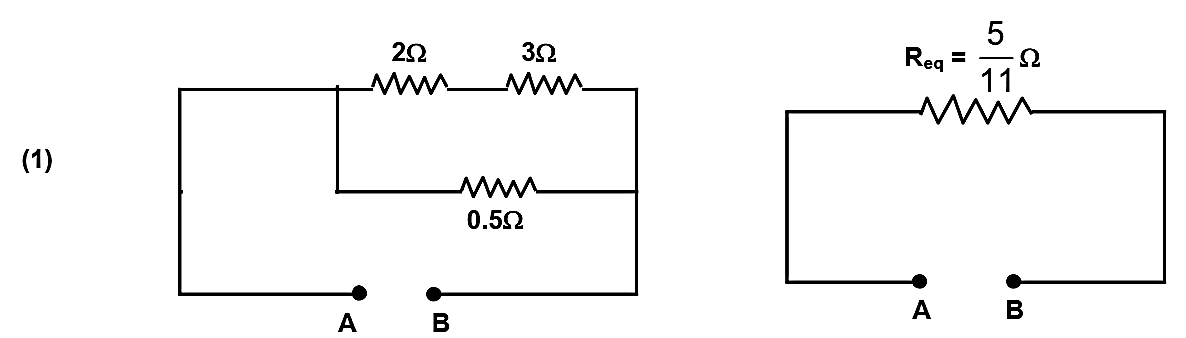

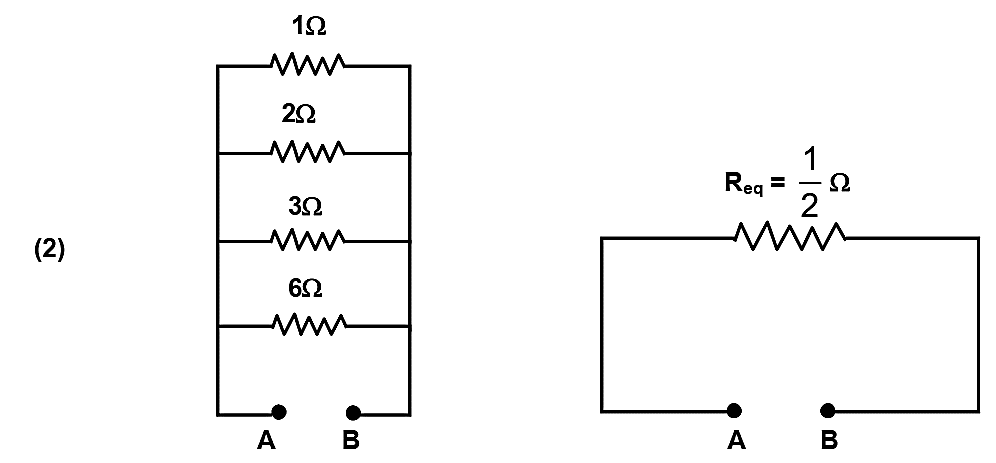

The correct answer is:
CHECK THE SOLUTION.

(a,b,c)
