PARAGRAPH-II

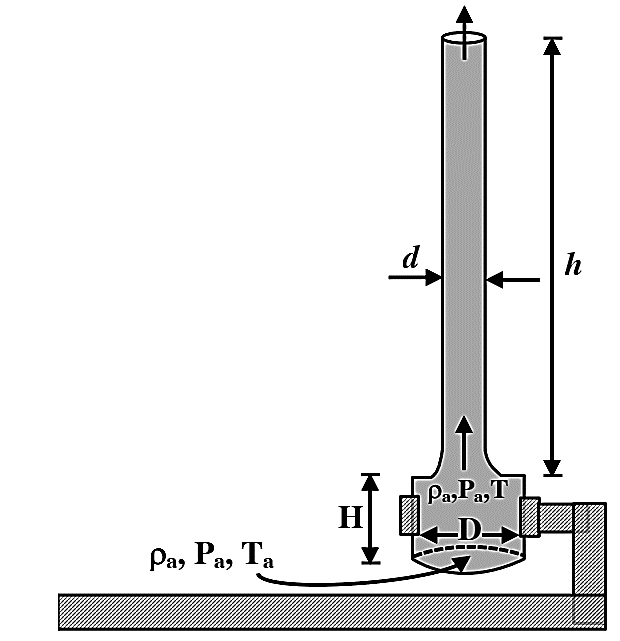

A cylindrical furnace has height (H) and diameter (£)) both 1 m. It is maintained at temperature 360 K. The air gets heated inside the furnace at constant pressure P a and its temperature becomes T= 360 K. The hot air with density rises up a vertical chimney of diameter d = 0.1 m and height h = 9 m above the furnace and exits the chimney (see the figure). As a result, atmospheric air of density p a = 1.2 kg m -3 , pressure P a and temperature T a = 300 K enters the furnace. Assume air as an ideal gas, neglect the variations in and T inside the chimney and the furnace. Also ignore the viscous effects. [Given: The acceleration due to gravity g = 10 ms -2 and = 3.14]

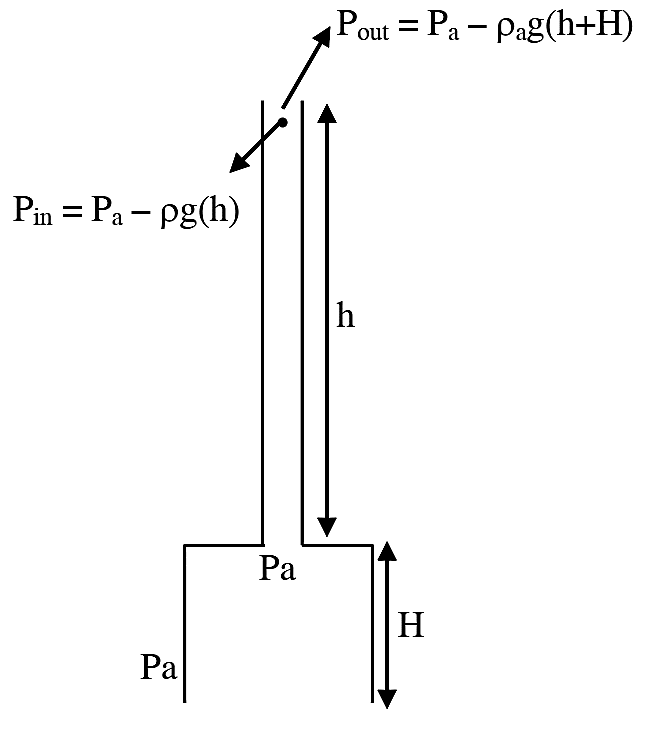

When the chimney is closed using a capat the top, a pressure difference P develops between the top and the bottom surfaces of the cap. If the changes in the temperature and density of the hot air, due to the stoppage of air flow, are negligible then the value of P is______Nm -2 .
