PART I: PHYSICS

Section - 1 (Maximum Marks: 18)

• This section contains SIX (06) questions.

• Each question have FOUR options. ONLY ONE of these four options is the correct answer.

• For each question, choose the option corresponding to the correct answer.

• Answer to each question will be evaluated according to the following marking scheme:

Full Marks : +3 If ONLY the correct option is chosen.

Zero Marks : 0 If none of the options is chosen (i.e. the question is unanswered);

Negative Marks : -1 In all other cases.

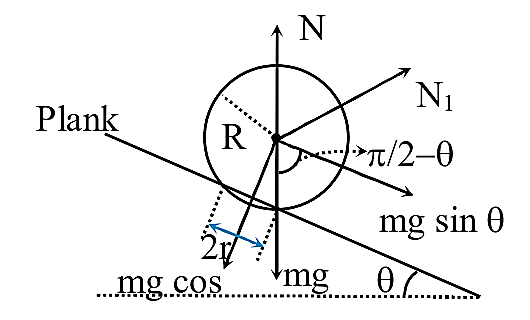

A football of radius R is kept on a hole of radius r (r < R) made on a plank kept horizontally. One end of the plank is now lifted so that it gets tilted making an angle from the horizontal as shown in the figure below. The maximum value of so that the football does not start rolling down the plank satisfies (figure is schematic and not drawn to scale)
