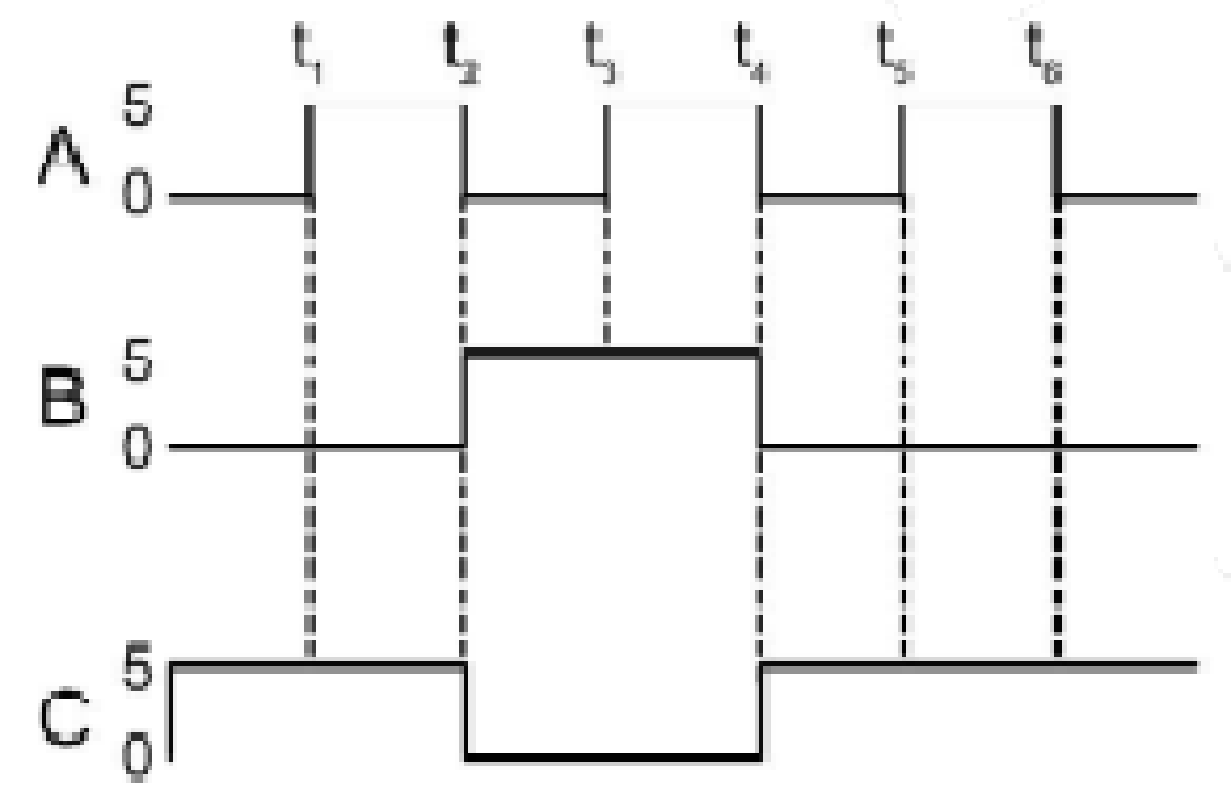

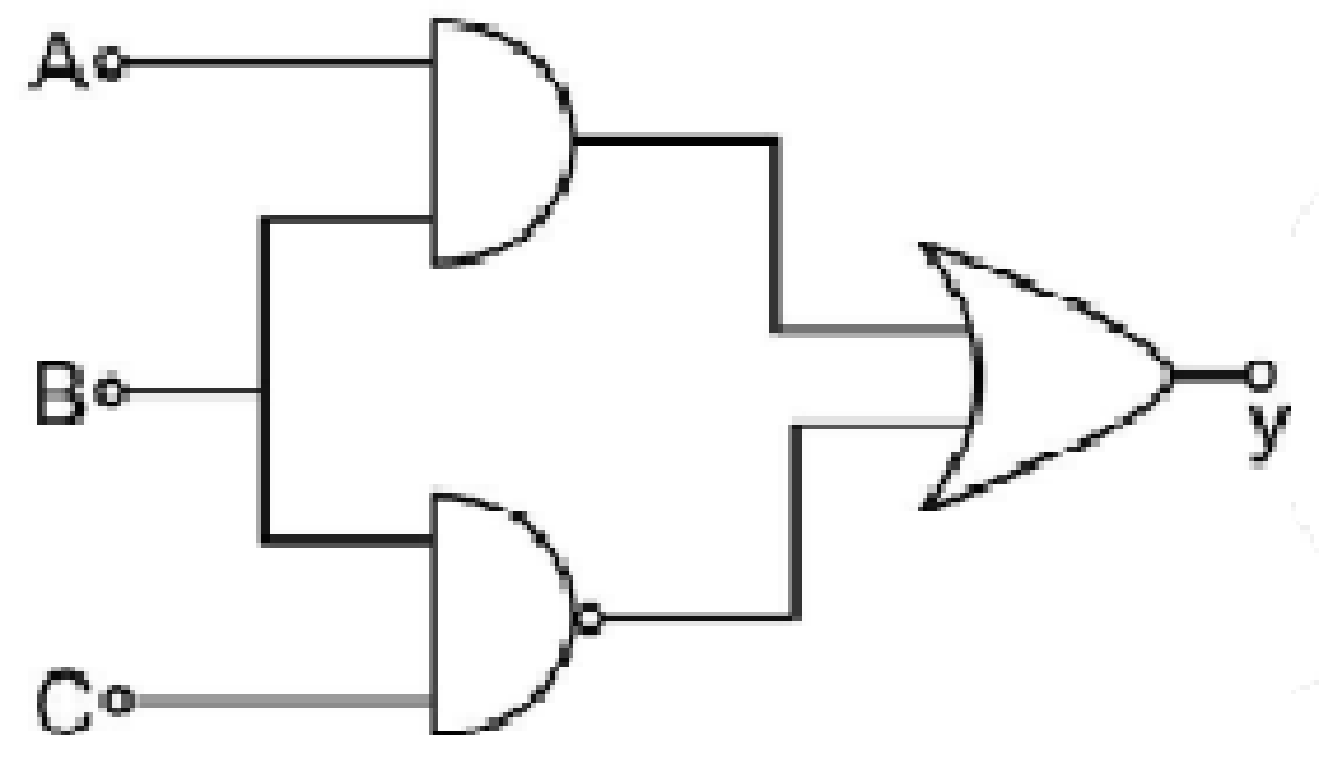

For the given circuit, the input digital signals are applied at the terminals A, B and C. What would be the output at the terminal y?

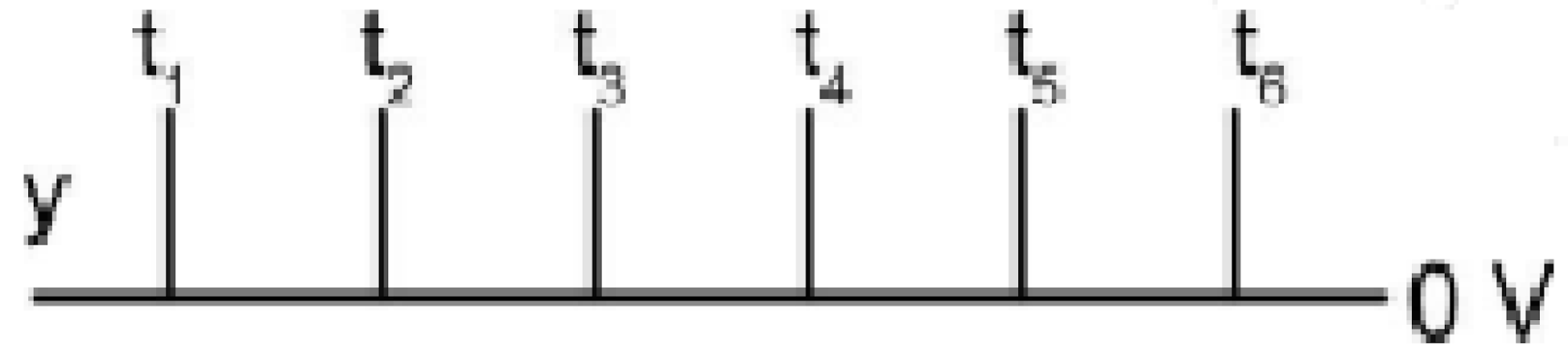

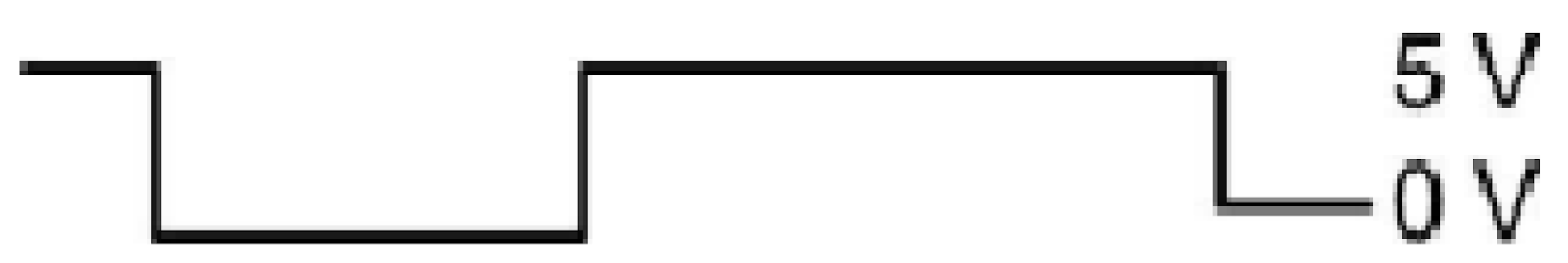

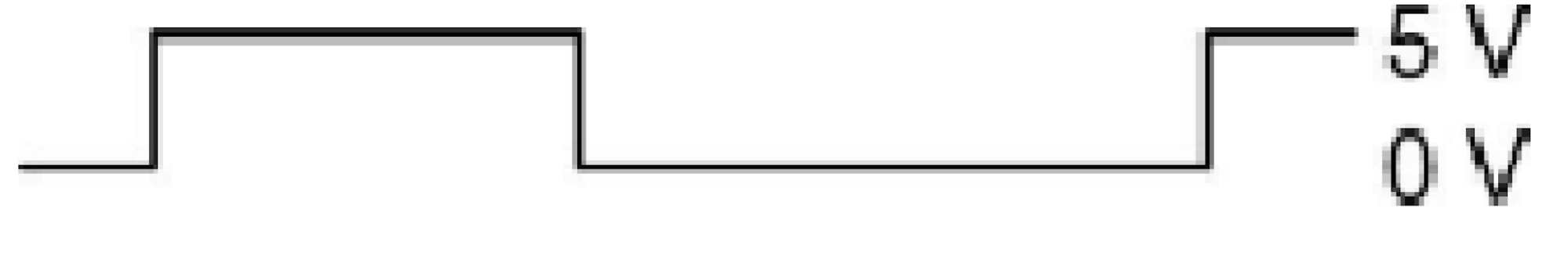

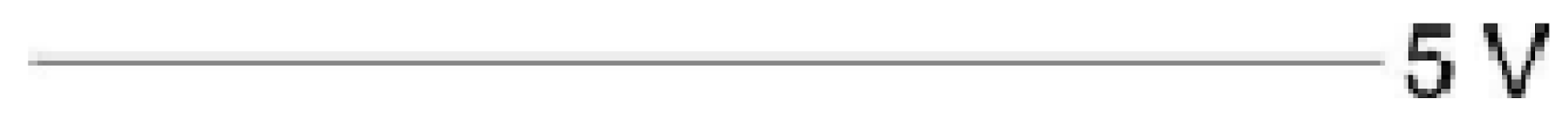

A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
NOT AVAILABLE
The logic operation
Now input
A B C Y
0 0 1 1
1 0 1 1
0 1 0 1
1 1 0 1
──────────────────────────────────────────────────────────────────────────────────────────
