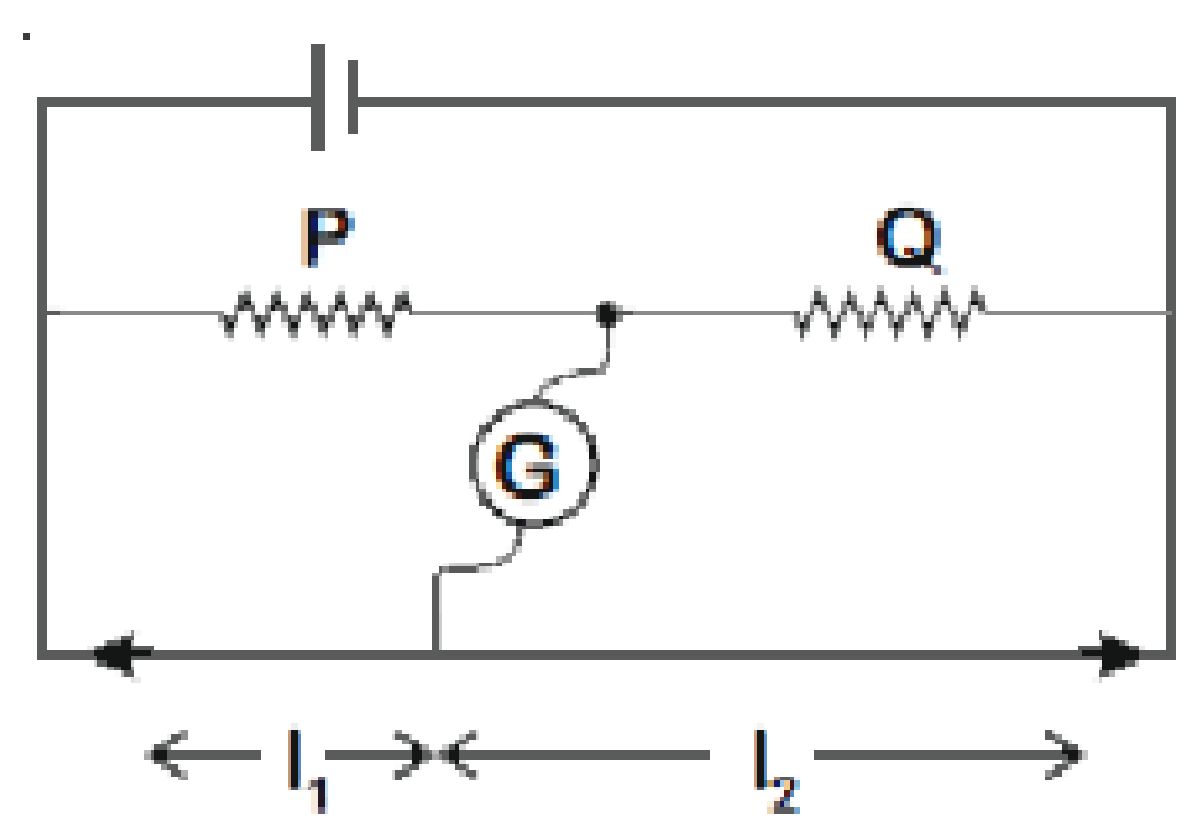

The metre bridge shown is in balance position with
. If we now interchange the positions of galvanometer and cell, will the bridge work? If yes, what will be balance condition?
Text Solution
Verified by ExpertsNOT AVAILABLE

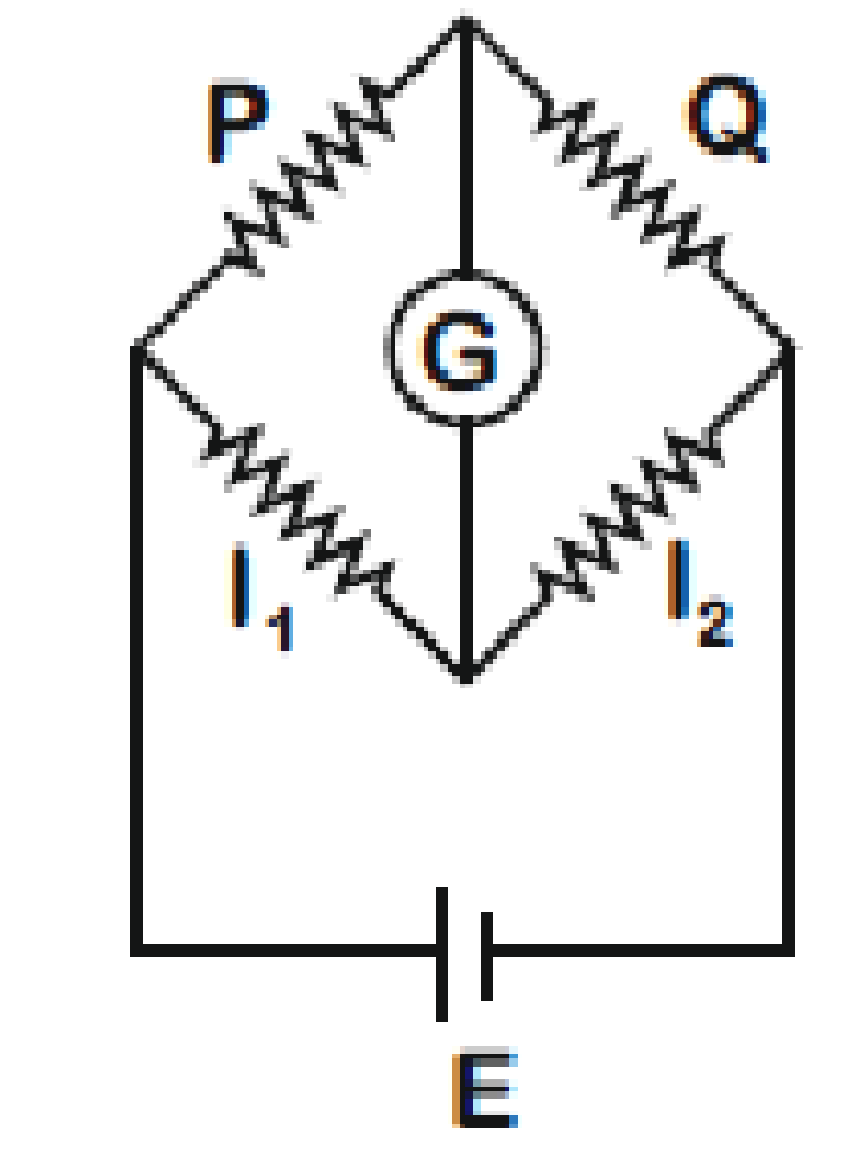

According to given condition for the balanced bridge connection, the relation between P, Q, l 1 and l 2 is

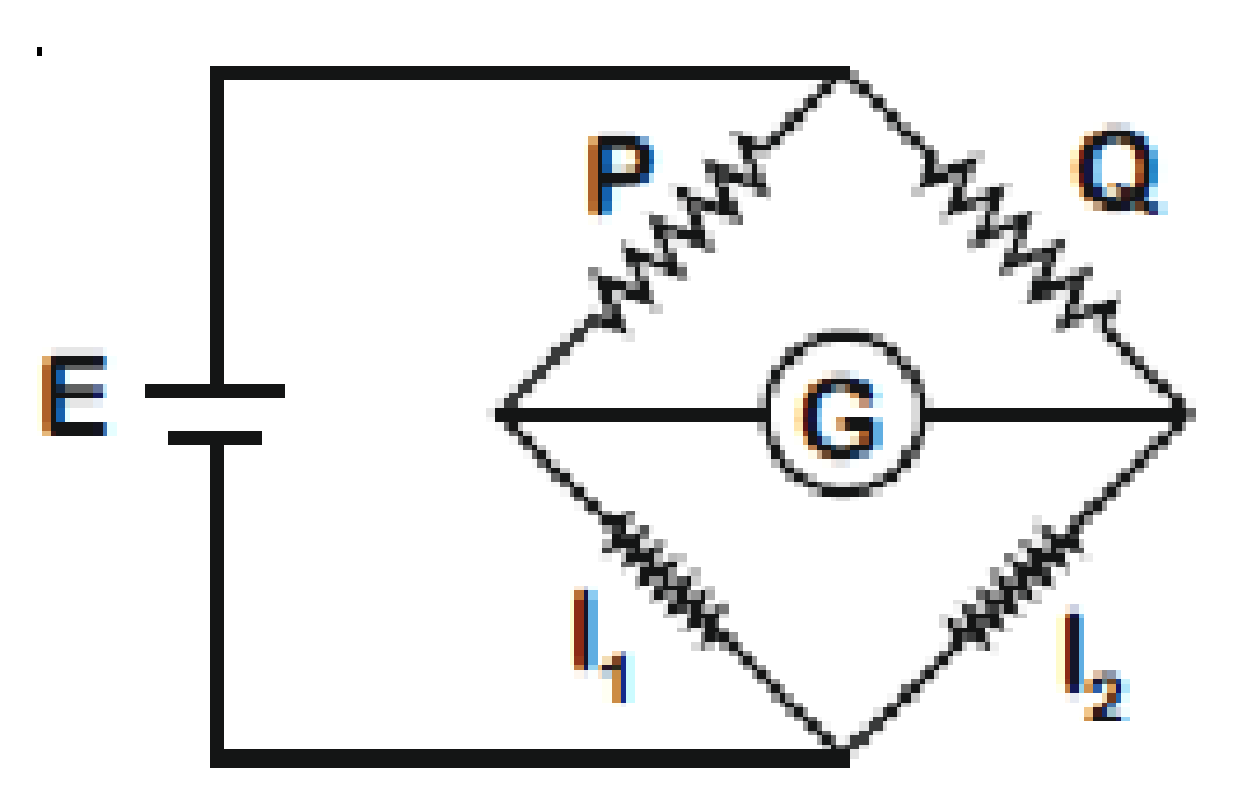

Now, if we interchange the position, the relation for P, Q, l 1 and l 2 will be
As we can see from the above relation that on interchanging galvanometer and battery positions, the balance condition remains unchanged.
──────────────────────────────────────────────────────────────────────────────────────────
