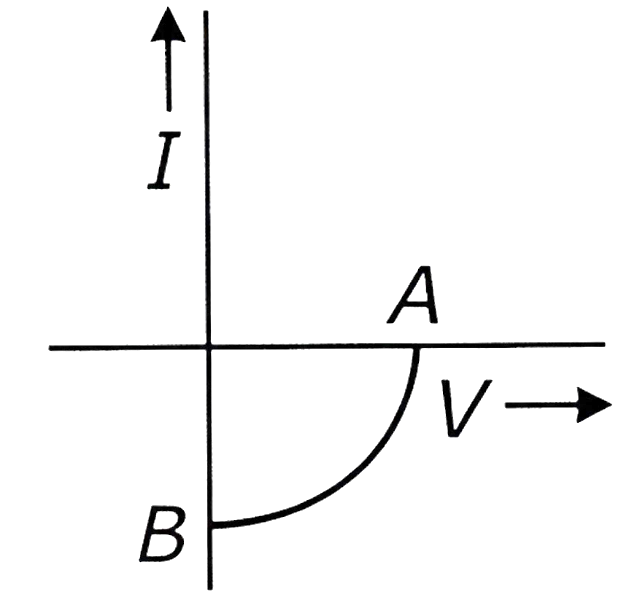

The given graph represents V-I characteristic for a semiconductor device.
Which of the following statements is correct ?
A
It is a photodiode and points
and
represents open voltage and current, respectively.
and represents open voltage and current, respectively. B
It is for a LED and points
and
represent open circuit voltage and short circuit current, respectively.
and represent open circuit voltage and short circuit current, respectively. C
It is V-I characteristic for solar cell where, point
represents open circuit voltage and point
short circuit current.
represents open circuit voltage and point short circuit current. D
It is for a solar cell and points
and
represent open circuit voltage and current, respectively.
and represent open circuit voltage and current, respectively.
Text Solution
Verified by ExpertsThe correct answer is:
C

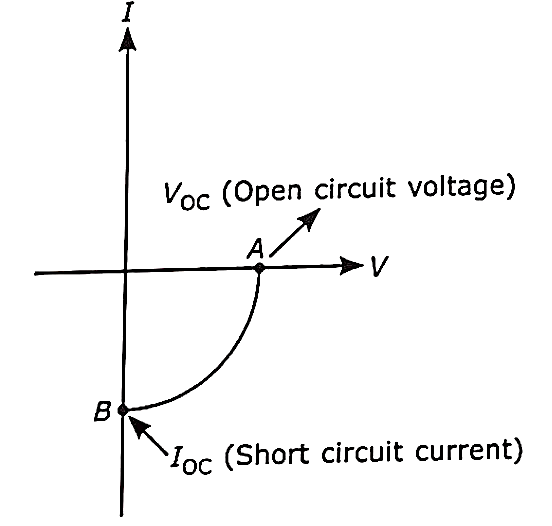

It is V-I characteristic for solar cell where, point
represents open circuit voltage and point
short circuit current.
──────────────────────────────────────────────────────────────────────────────────────────
