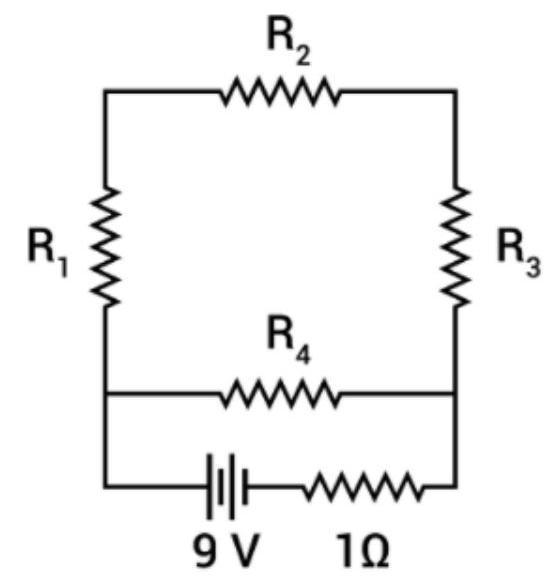

A wire of
is bent to form a square. Now a cell of 9 volt and internal resistance
is connected across one of the sides. Find the potential difference across the diagram of the square.
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
C
Using ohm's law,
I is the total current flowing across circuit voltage across internal resistance
Voltage across square diagram
──────────────────────────────────────────────────────────────────────────────────────────
