A student is provided with a variable voltage source V, a test resistor
, two identical galvanometers
and
and two additional resistors,
and
. For conducting an experiment to verify ohms law, the most suitable circuit is:

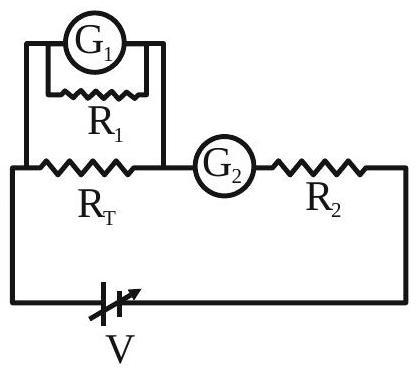

A

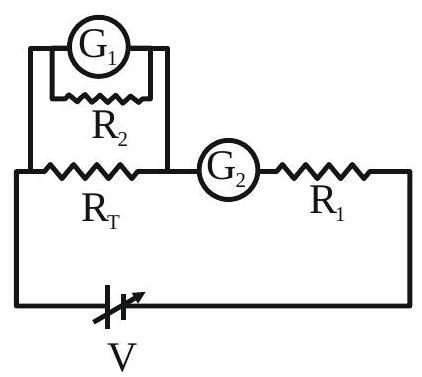

B

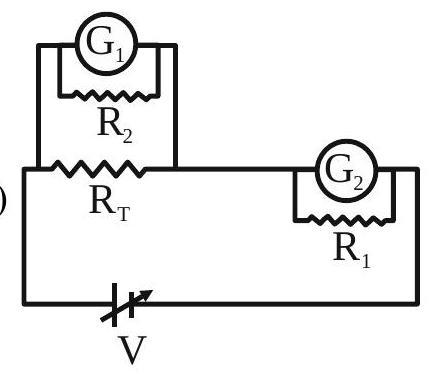

C

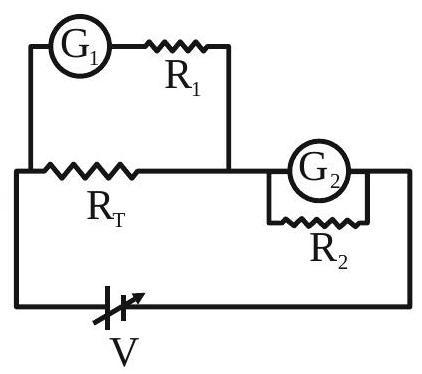

D
Text Solution
Verified by ExpertsThe correct answer is:
C
To convert galvanometer into ammeter low resistances should be added into parallel & for voltmeter conversion, a very high resistance should be added in series.
──────────────────────────────────────────────────────────────────────────────────────────
