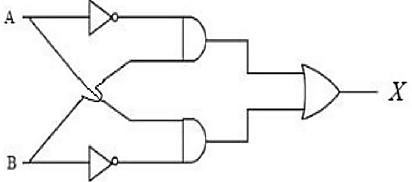

For the given logic gates combination, the correct truth table will be
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
C
From Bodean Algebra:
The correct truth table will be
0 | 0 | 0 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 0 |
──────────────────────────────────────────────────────────────────────────────────────────
