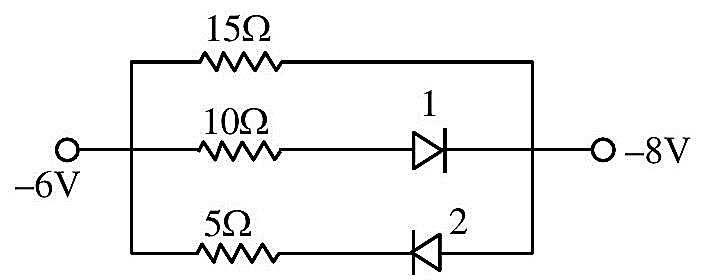

The value of net resistance of the network as shown in the given figure is:
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
C
Diode 2 is in reverse bias
So current will not flow in branch of
diode, So we can assume it to be broken wire.
Diode 1 is in forward bias

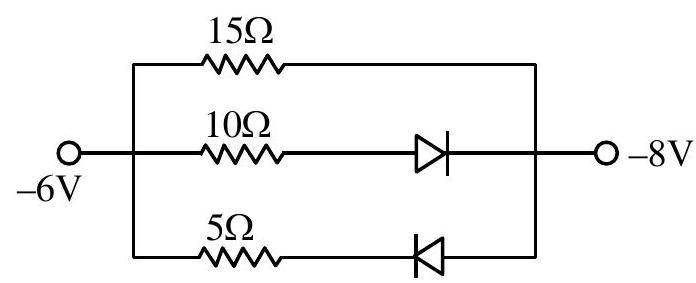

So it will behave like conducting wire. So new circuit will be
──────────────────────────────────────────────────────────────────────────────────────────
