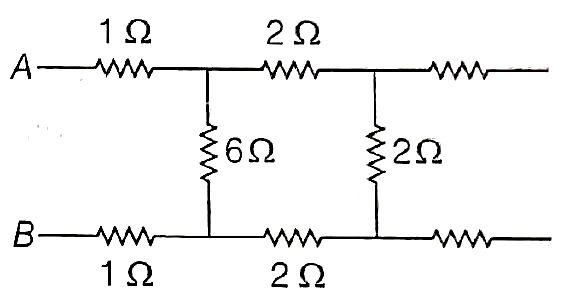

Thc equivalent resistance between
and
is
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:

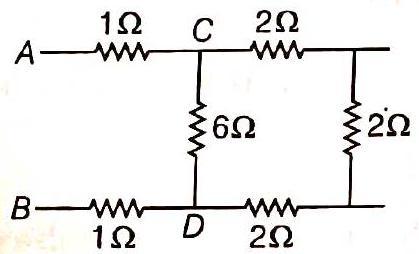

Equivalent circuit is shown below
Here,
resistors are in series combination.
and
are in parallel combination.
