Because of 3d10 configuration no (n – 1)d orbital is available for d2sp3 hybridisation and thus forms outer orbital complex. The complex is diamagnetic.

Because of 3d8 configuration no (n – 1)d orbital is available for d2sp3 hybridisation and thus forms outer orbital complex. The complex is paramagnetic with two unpaired electrons.

The complex is inner orbital complex but 3d3 configuration has three unpaired electrons with weak as well as with strong field ligand.

In the diamagnetic octahedral complex, [Co(NH3)6]3+, the cobalt ion is in +3 oxidation state and has the electronic configuration represented as shown below.

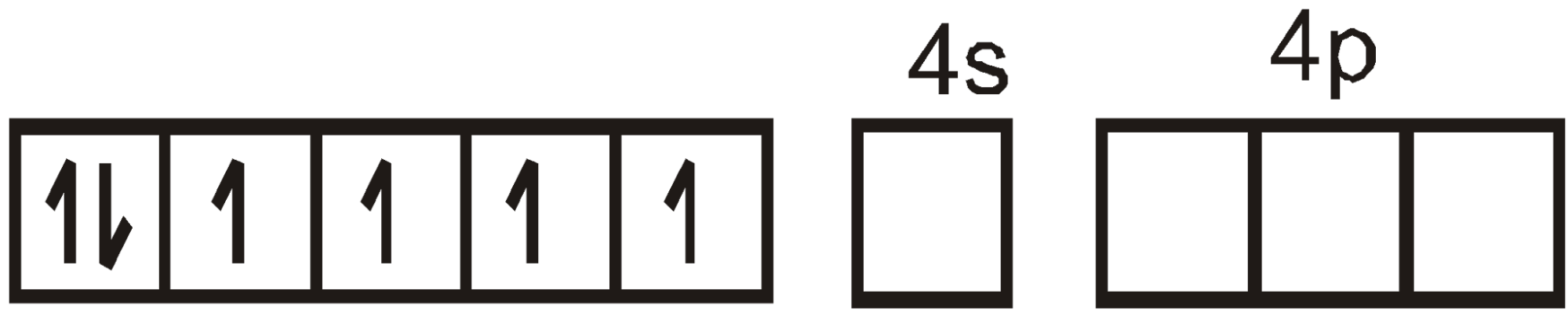

Co3+,[Ar]3d6

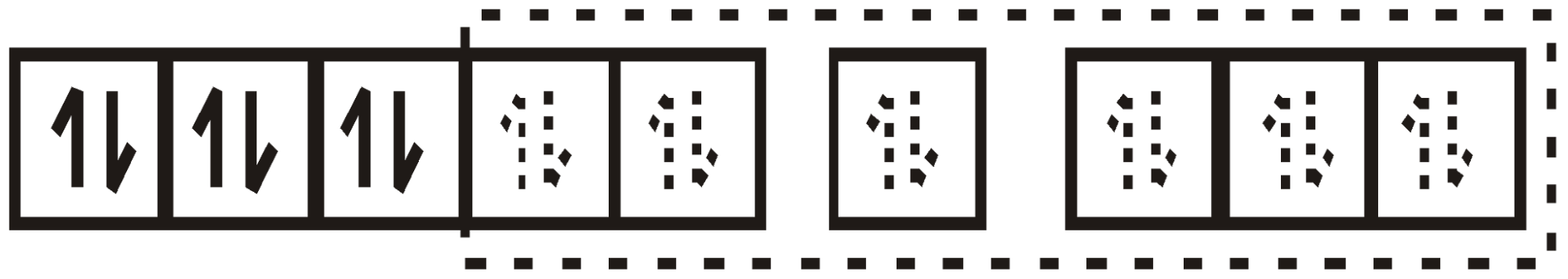

[Co(NH3)6]3+

(inner orbital or d2sp3 hybrid orbital

low spin complex) six pairs of electrons from six nh3 molecules.
