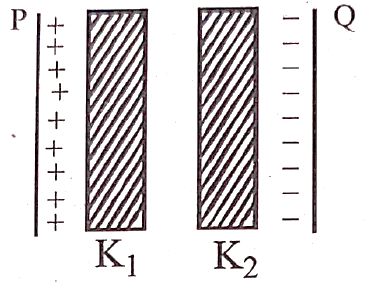

Two thin dielectric slabs of dielectric constants
and
are inserted between plates of a parallel plate capacitor, as shown in the figure. The variation of electric field ' E ' between the plates with distance ' d ' as measured from plate P is correctly shown by:
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
C

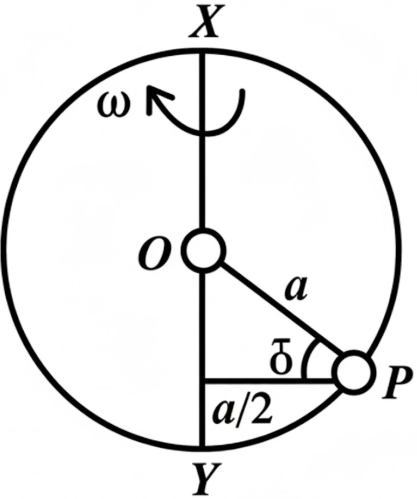

F.B.D. of ring P implies
