Lines L 1 & L 2 are rotating in an anticlockwise direction about the points A (- 2, 0) and -B (2, 0) respectively in such a way that the speed of angle of rotation of line L 2 is double as that of L 1 . Initially equations of both lines are y = 0. If the angle of rotation of line L 2 varies between 0 to
, then the locus of the point of intersection P of lines L 1 &L 2 is part of a circle whose radius is equal to
Text Solution
Verified by ExpertsThe correct answer is:
B
4 units

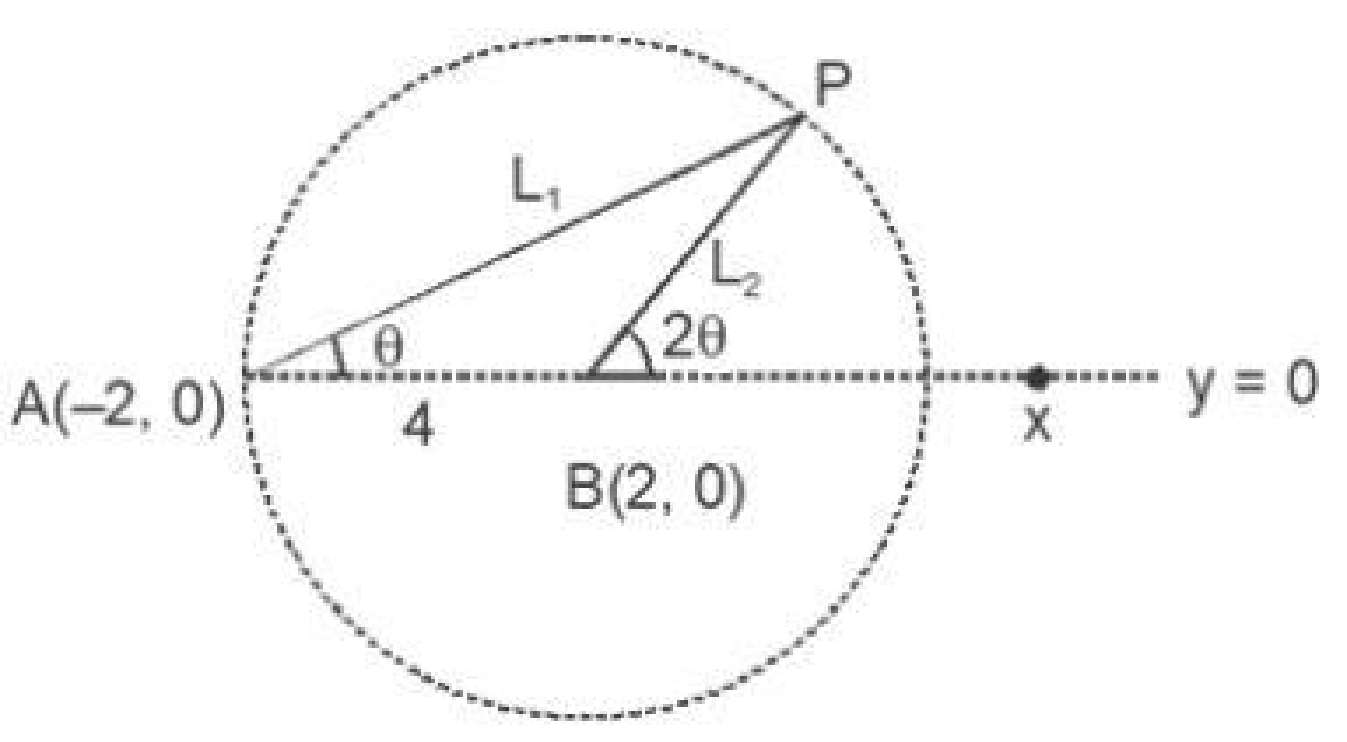

Locus of P is part of circle whose center is (2, 0) & radius is equal to 4 units
