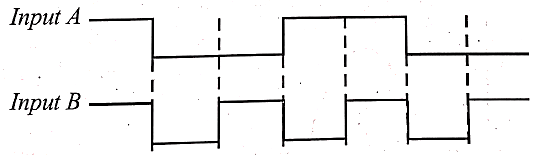

The logic circuit shown below has the input waveforms ' A ' and ' B ' as shown. Pick out the correct output waveform.
output is
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
D
Here
. Thus it is an AND gate for which truth table is
A | B | Y |
0 | 0 | 0 |
0 | 1 | 0 |
1 | 0 | 0 |
1 | 1 | 1 |
──────────────────────────────────────────────────────────────────────────────────────────
