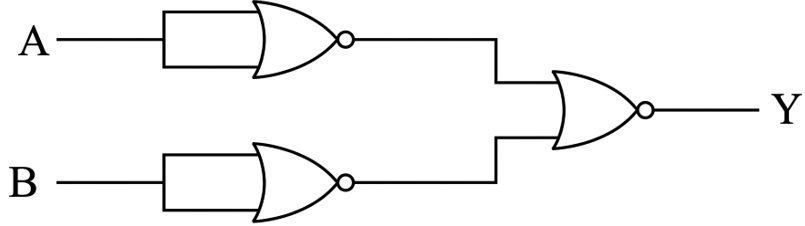

Identify the logic operation performed by the given circuit:
Text Solution
Verified by ExpertsThe correct answer is:
A
AND gate
(D ’ MORGAN LAW)
Y = AB
