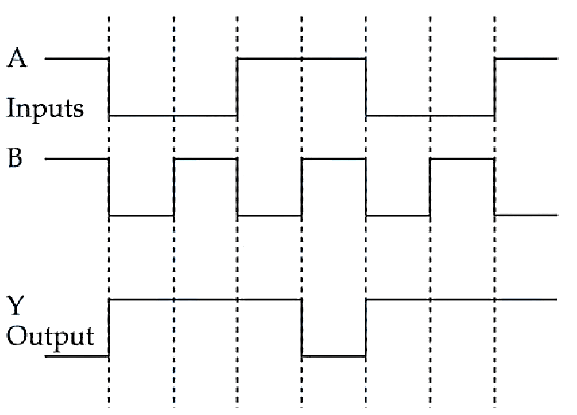

Identify the correct Logic Gate for the following output (Y) of two inputs A and B.
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
B
A | B | Y |
1 | 1 | 0 |
0 | 0 | 1 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 0 |
0 | 0 | 1 |
0 | 1 | 1 |
1 | 0 | 1 |
NAND Gate
