The Boolean expression can be realised with which of the following gate configurations.

A

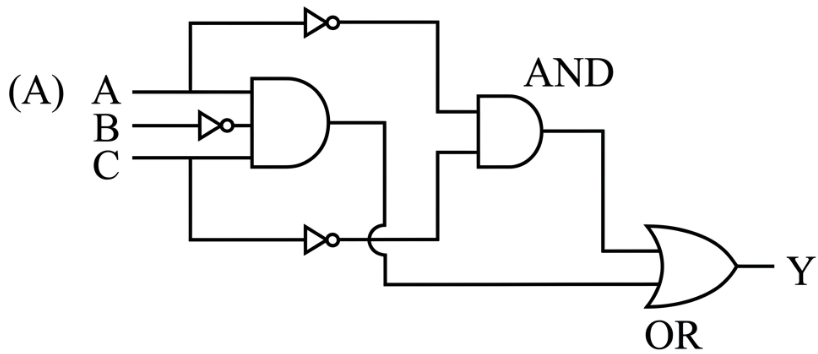

One 3-input AND gate, 3 NOT gates and one 2-input OR gate, One 2-input AND gate,
B, C Only
B

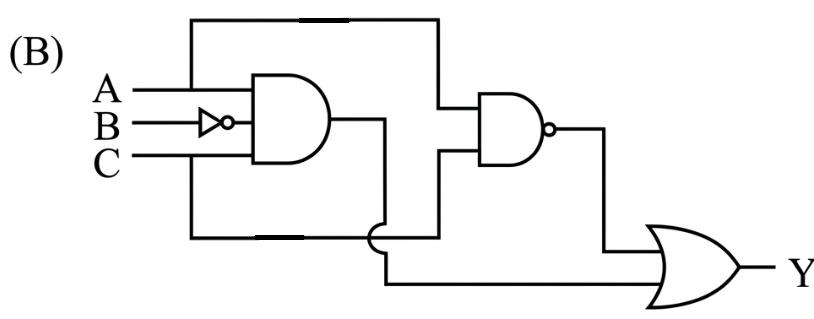

One 3 -input AND gate, 1 NOT gate, One 2 input NOR gate and one 2 -input OR gate
A, B, C Only
C
3 -input OR gate, 3 NOT gates and one 2 input AND gate Choose the correct answer from the options given below:
A, B Only
D
A, C Only

Share this question

WhatsApp

For Instagram sharing, use “Apps” on mobile or copy the link.

Text Solution

Verified by Experts
The correct answer is:
C

NOR gate
