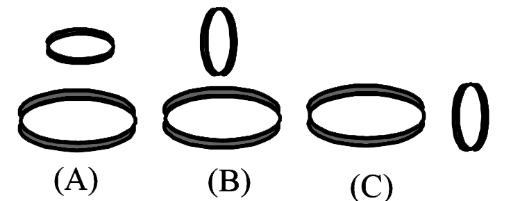

Two circular coils can be arranged in any of the three situations shown in the figure. Their mutual inductance will be
Text Solution
Verified by ExpertsThe correct answer is:
A
The mutual inductance between two coils depends on their degree of flux linkage i.e. the fraction of flux linked with one coil which is also linked to the other coil.
Here, the two coils in arrangement (
) are placed with their planes parallel which allows maximum flux
