The air in a circular cylinder (Fig.) is heated until the spring is compress 50 mm. Find the work done by the air on the frictionless piston. The spring is initially unstretched, as shown.

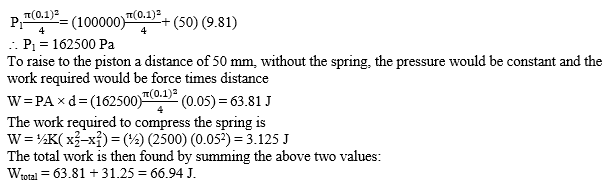

Text Solution
Verified by ExpertsThe correct answer is:
A
Step 1: Identify the parameters.
- Mass of the piston (m) = 50 kg
- Compression of the spring (x) = 50 mm = 0.05 m
- Area of the piston (A) = $\pi r^2$ (where r = 5 cm = 0.05 m) = $\pi (0.05)^2 = 7.85 \times 10^{-3} m^2$
Step 2: Calculate the force exerted by the weight of the piston.
Force (F) = m * g = 50 kg * 9.81 m/s² = 490.5 N
Step 3: Calculate the work done by the air on the piston using the formula for work done on a spring:
Work done (W) = \( \frac{1}{2} k x^2 \)
Here, we first need to find k. Since F = kx, we find k = \( \frac{F}{x} = \frac{490.5}{0.05} = 9810 N/m \)
Step 4: Substitute k back into the work formula:
W = \( \frac{1}{2} \cdot 9810 \cdot (0.05)^2 = \frac{1}{2} \cdot 9810 \cdot 0.0025 = 12.2625 J \)
Therefore, the work done by the air on the frictionless piston is approximately 12.26 Joules.
- Mass of the piston (m) = 50 kg
- Compression of the spring (x) = 50 mm = 0.05 m
- Area of the piston (A) = $\pi r^2$ (where r = 5 cm = 0.05 m) = $\pi (0.05)^2 = 7.85 \times 10^{-3} m^2$
Step 2: Calculate the force exerted by the weight of the piston.
Force (F) = m * g = 50 kg * 9.81 m/s² = 490.5 N
Step 3: Calculate the work done by the air on the piston using the formula for work done on a spring:
Work done (W) = \( \frac{1}{2} k x^2 \)
Here, we first need to find k. Since F = kx, we find k = \( \frac{F}{x} = \frac{490.5}{0.05} = 9810 N/m \)
Step 4: Substitute k back into the work formula:
W = \( \frac{1}{2} \cdot 9810 \cdot (0.05)^2 = \frac{1}{2} \cdot 9810 \cdot 0.0025 = 12.2625 J \)
Therefore, the work done by the air on the frictionless piston is approximately 12.26 Joules.
