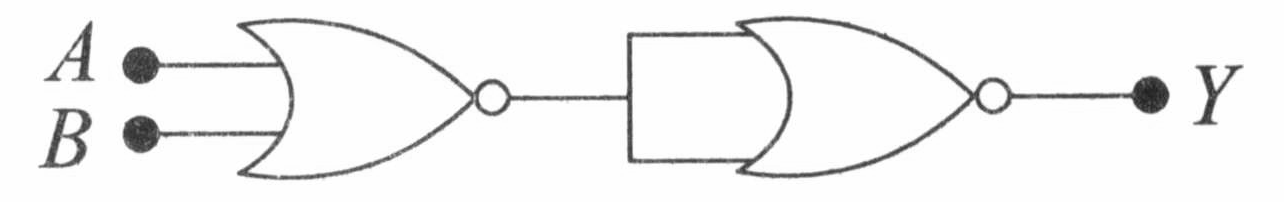

In the following circuit, the output
for all possible inputs
and
is expressed by the truth table: [2007]
A | B | Y |
0 | 0 | 0 |
0 | 1 | 0 |
1 | 0 | 0 |
1 | 1 | 1 |
A | B | Y |
0 | 0 | 1 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 0 |
A | B | Y |
0 | 0 | 1 |
0 | 1 | 0 |
1 | 0 | 0 |
1 | 1 | 0 |
A | R | Y |
0 | 0 | 0 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 1 |
Text Solution
Verified by ExpertsThe correct answer is:
D
Gates‐
and

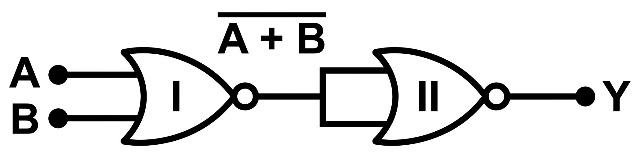

are NOR gates. We can simplify the gate circuit as
Here, gates
and
are NOR gates. The output
of gate
will be appeared as input of gate II. The final output is
This is the Boolean expression of OR gate whose truth table is given below
A | B | Y |
0 | 0 | 0 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 1 |
