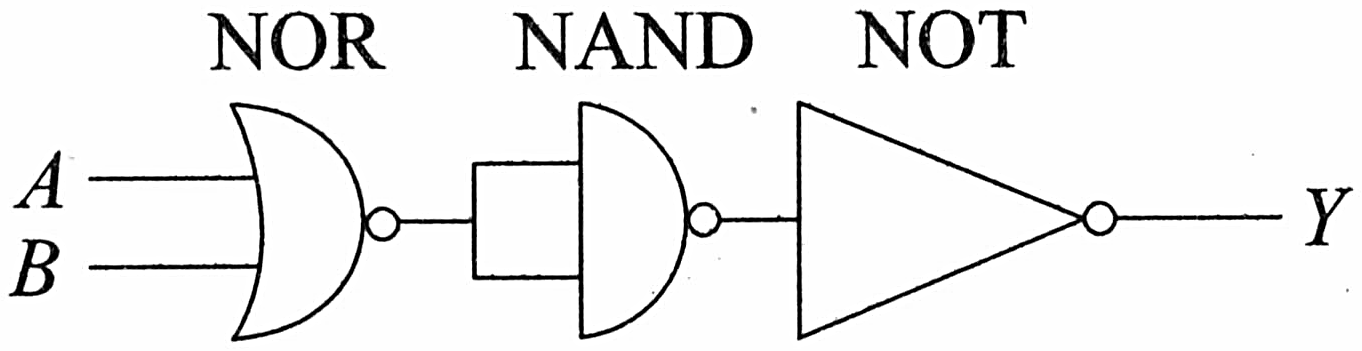

The circuit is equivalent to [2008]
Text Solution
Verified by ExpertsThe correct answer is:
C
The output is the output of NOR gate hence the combination will act as a NOR gate.
