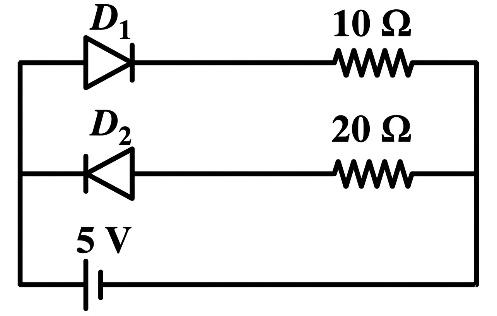

Two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is [2012]
Text Solution
Verified by ExpertsThe correct answer is:
A
In the given circuit the upper diode
is forward biased and the lower diode
is reverse biased. So, the current supplied by the battery is
