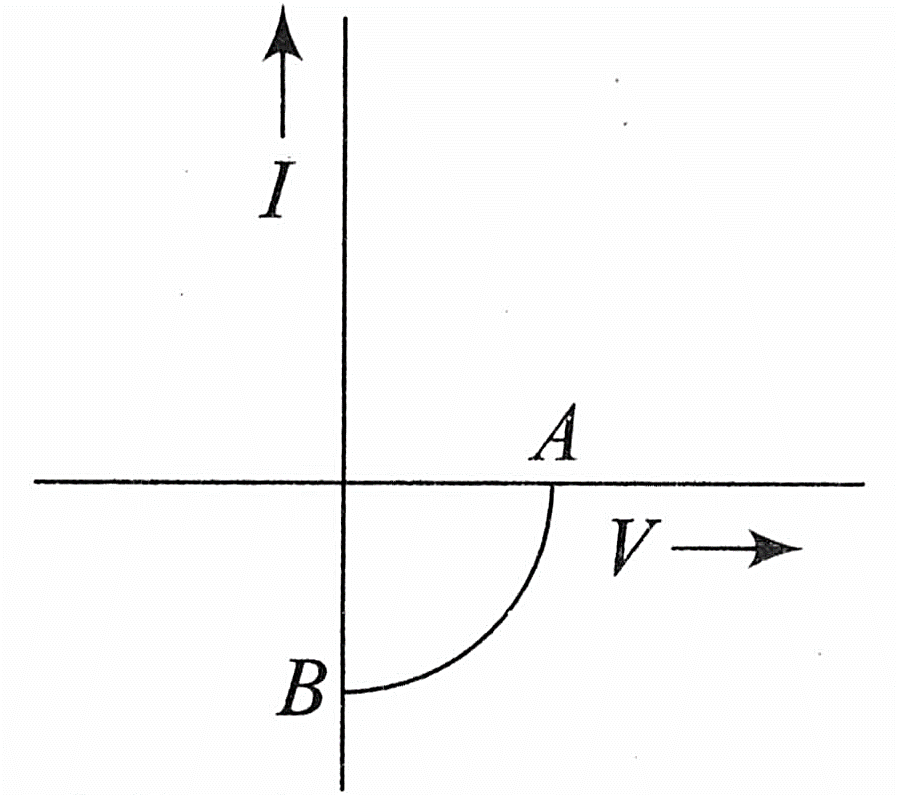

The given graph represents
characteristic for a semiconductor device. Which of the following statement is correct? [2014]
A
It is
characteristic for solar cell where point
represents open circuit voltage and point
short circuit current
characteristic for solar cell where point represents open circuit voltage and point short circuit current
B
It is for a solar cell and points
and
represent open circuit voltage and current, respectively
and represent open circuit voltage and current, respectively
C
It is for a photodiode and points
and
represent open circuit voltage and current, respectively
and represent open circuit voltage and current, respectively
D
It is for an LED and points
and
represents open circuit voltage and short circuit current respectively
and represents open circuit voltage and short circuit current respectively
Text Solution
Verified by ExpertsThe correct answer is:
A

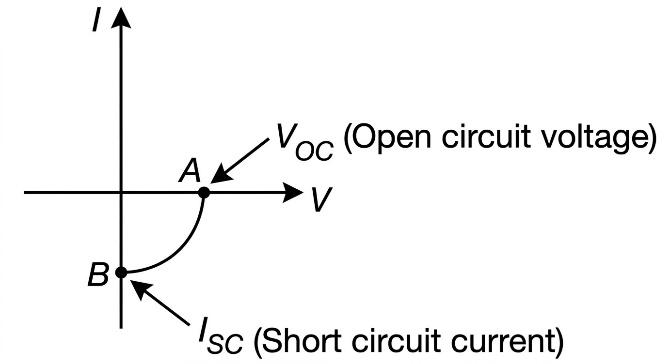

characteristics for a solar cell is shown in figure.
