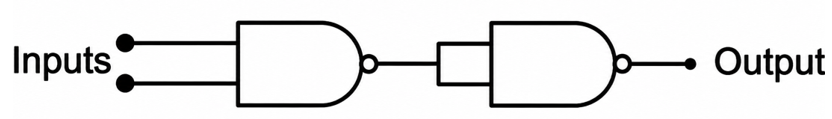

The circuit given below represents which of the logic operations? [2006]
Text Solution
Verified by ExpertsThe correct answer is:
B
Let two inputs are A and B. The circuit can be shown as
The two gates shown are NAND gates.
The output of gate
,
The output of gate
,
or
Thus, the combination behaves as it is an AND gate.
