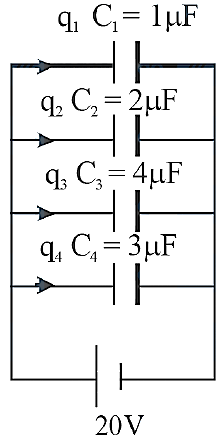

The total charge on the system of capacitance C 1 =1µF , C 2 =2µF, C 3 =4µF and C 4 =3µF connected in parallel is (Assume a battery of 20V is connected to the combination)
Text Solution
Verified by ExpertsThe correct answer is:
A
Total charge = q 1 + q 2 + q 2 + q 4
= 1x20 + 2x20 + 4x20 + 3x20 = 200µC
