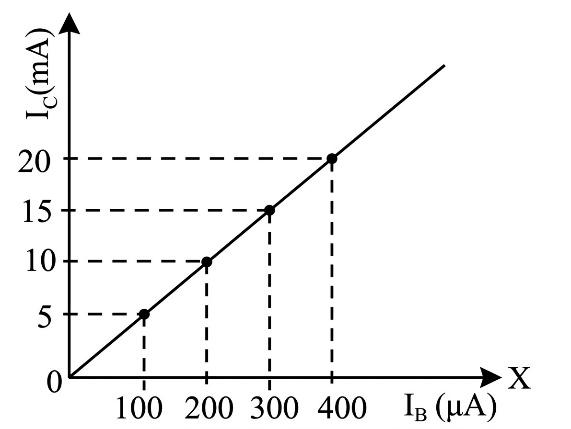

The typical transfer characteristic of a transistor in CE configuration is shown in figure. A load resistor of 2 k
is connected in the collector branch of the circuit used. The input resistance of the transistor is 0.50 k
. The voltage gain of the transistor is
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(200)
Current gain in C-E configuration
Voltage gam
