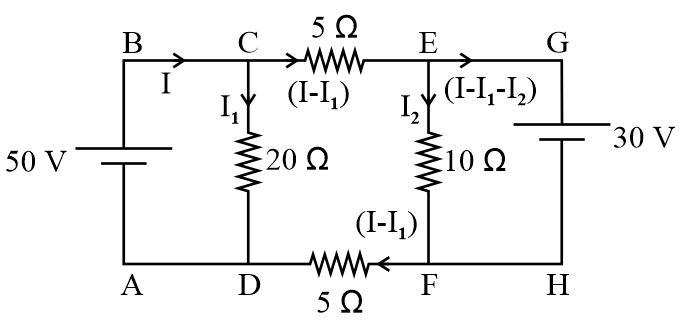

In the circuit shown, current (in A) through the 50 V and 30 V batteries are, respectively
Text Solution
Verified by ExpertsThe correct answer is:
B
4.5 and 1
Applying Kirchoff s loop rule in ABCDA
Applying Kirchoff s loop rule in EGHFE
Applying Kirchoff s loop rule in CEFDC
4.5 A and 1 A
