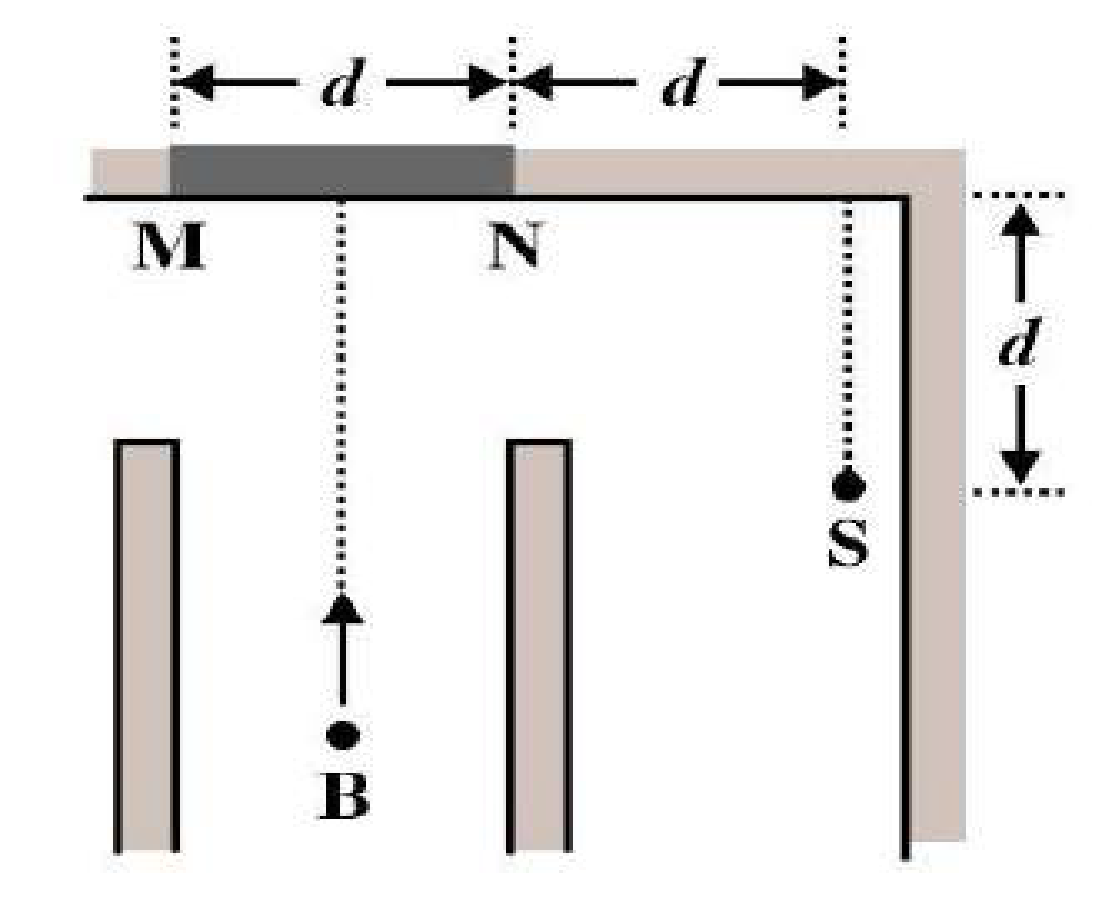

The figure shows an overhead view of a corridor with a plane mirror MN mounted at one end. A burglar B sneaks along the corridor directly towards the centre of the mirror. If d = 3 m, how far from the mirror will the burglar be when the security guard S can first see him in the mirror?
Text Solution
Verified by ExpertsThe correct answer is:
D
1.5m

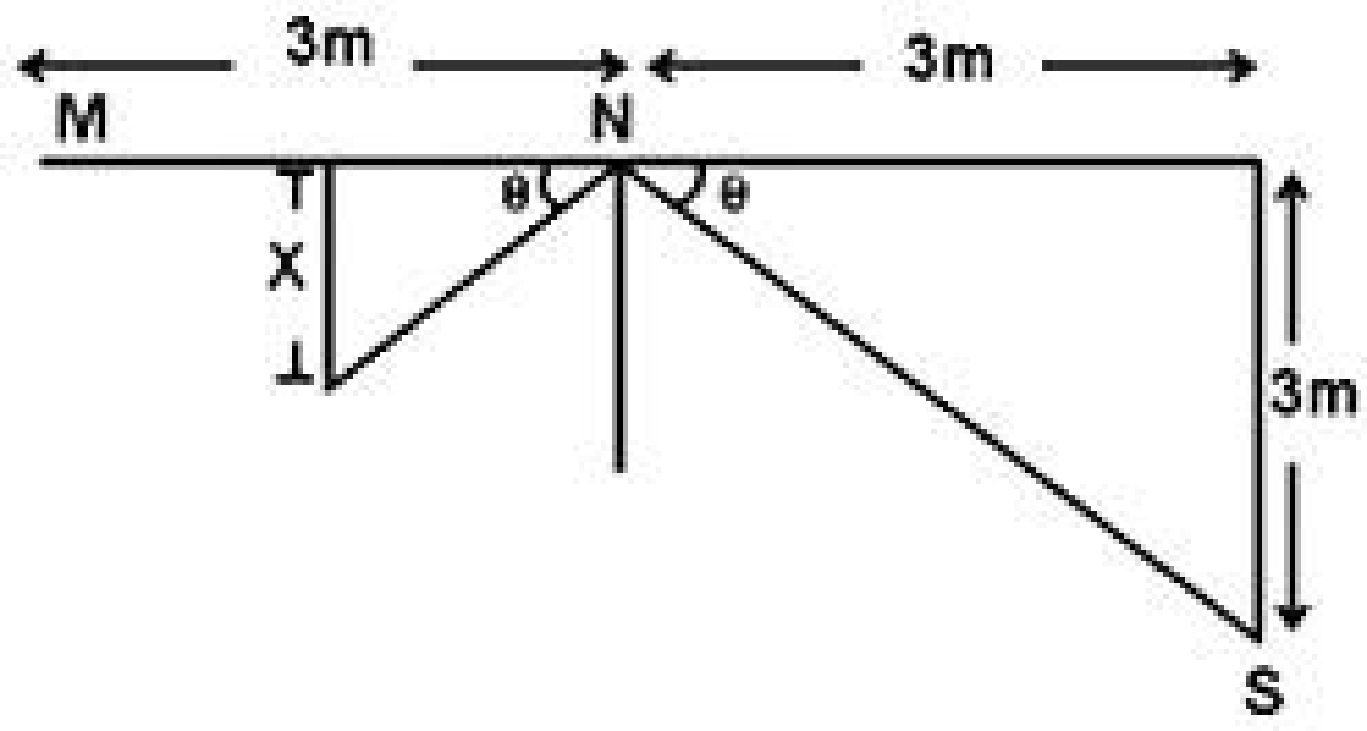

(in the smaller triangle)
(in the bigger triangle)
