A thin Plano-convex glass lens (
= 1 .5) has its plane surface silvered and R is the radius of curvature of curved part, then which of the following ray diagram is true for an object placed at O? (O is at a distance of 2R from the lens)

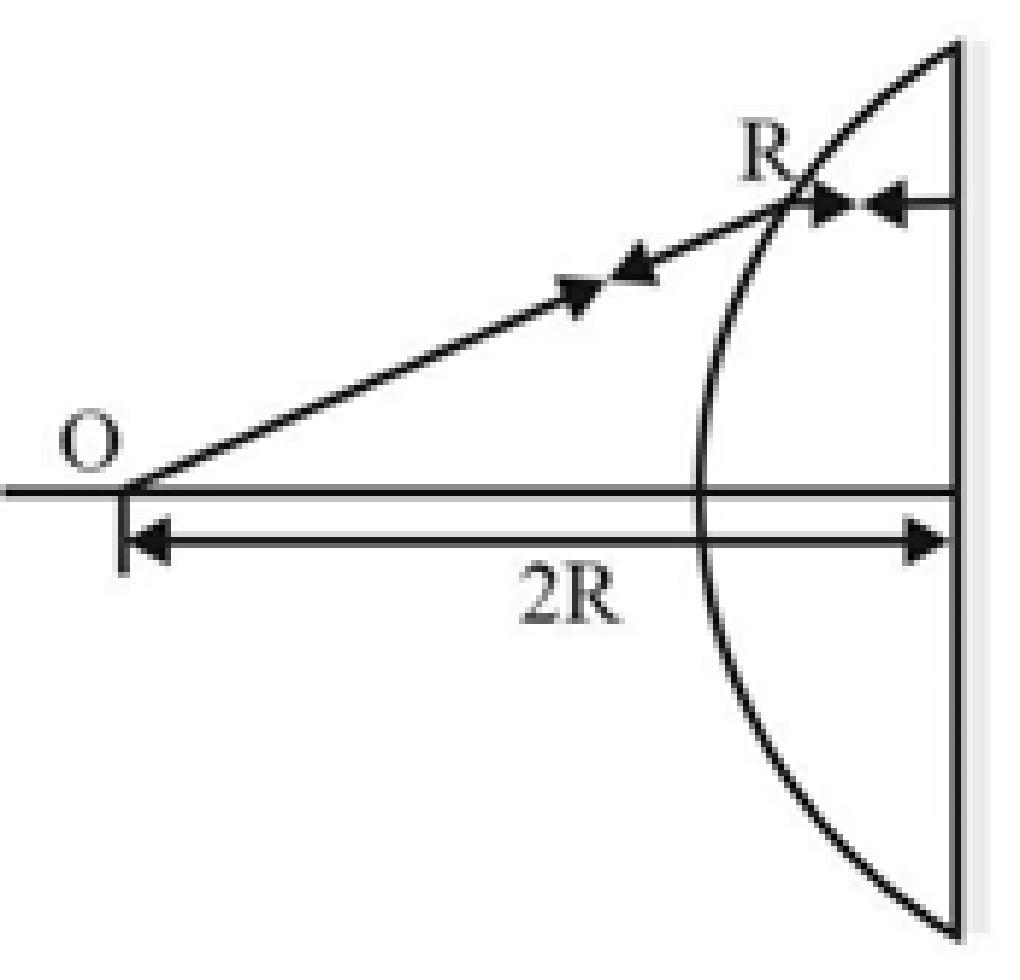

A

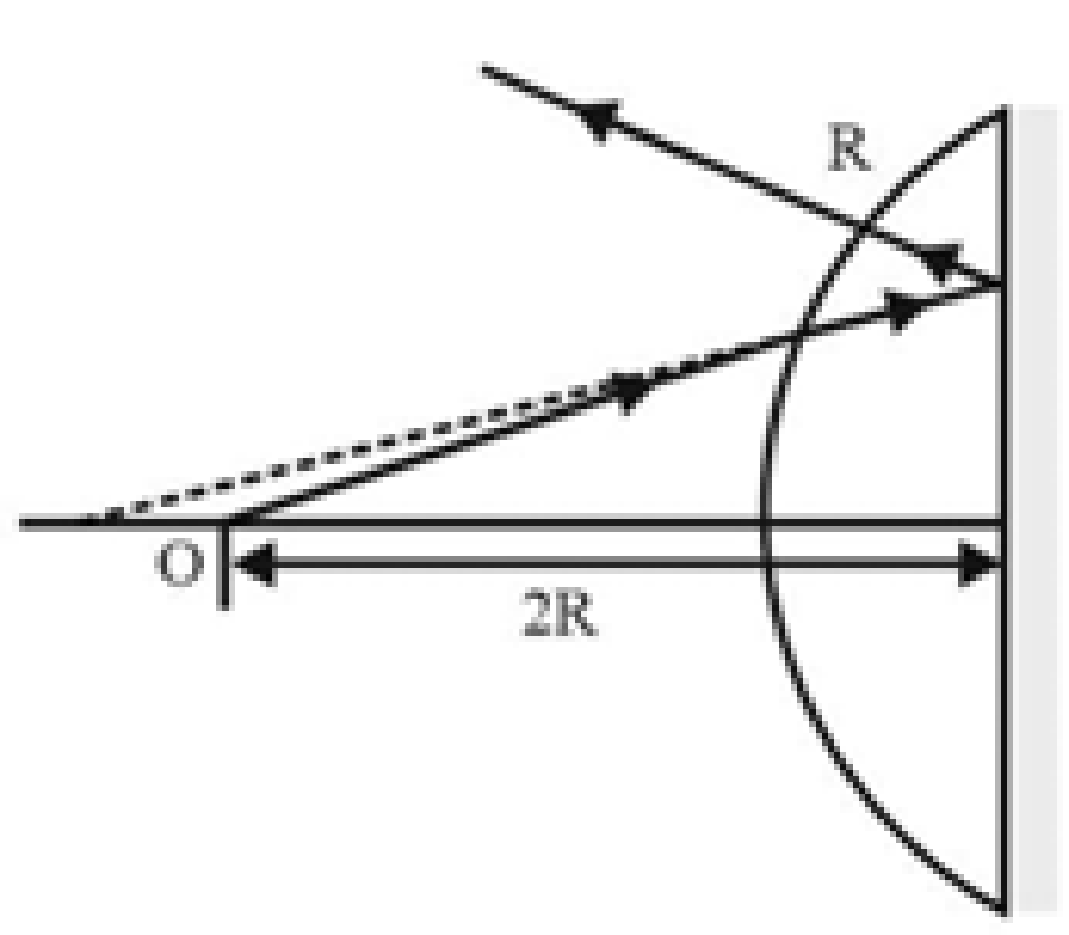

B

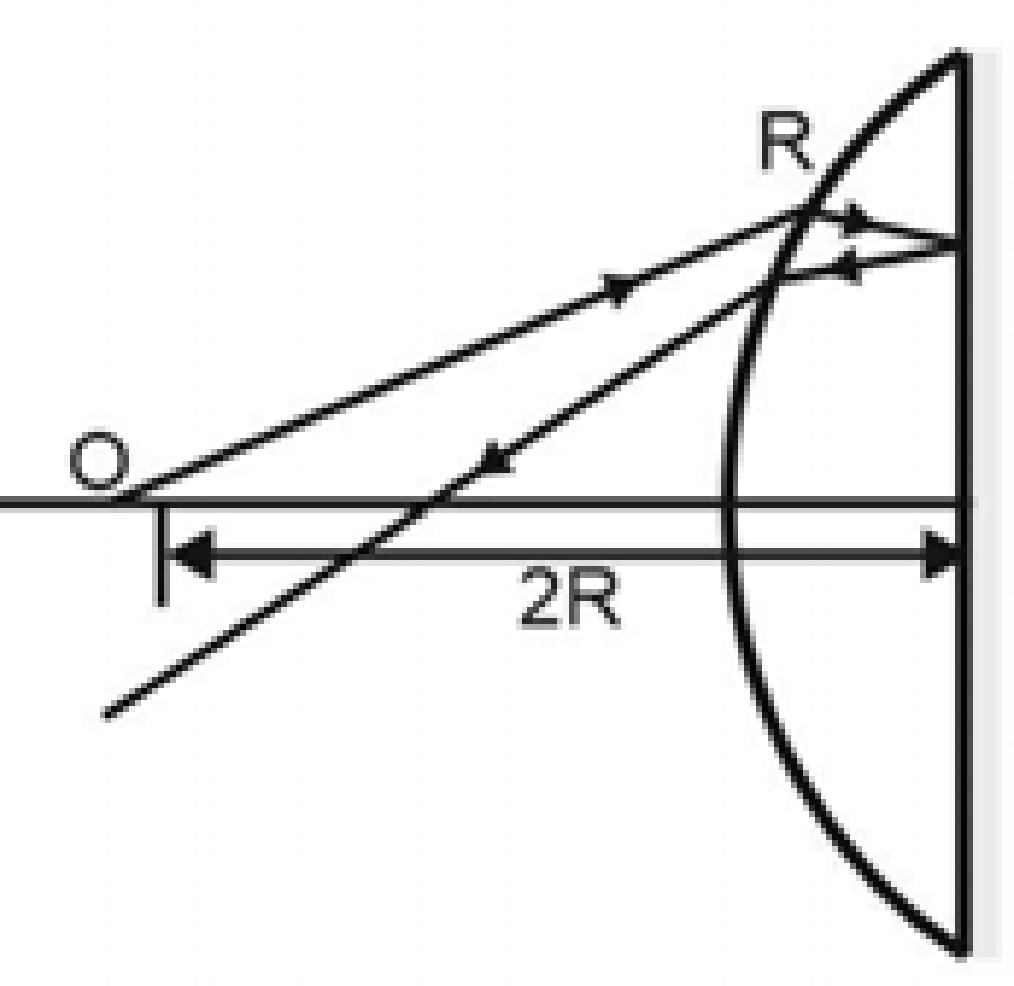

C
D
None of the above
Text Solution
Verified by ExpertsThe correct answer is:
B
For Refraction at first surface
,
Therefore, rays strike the mirror normally. So, by principle of reversibility, O and I coincide.
