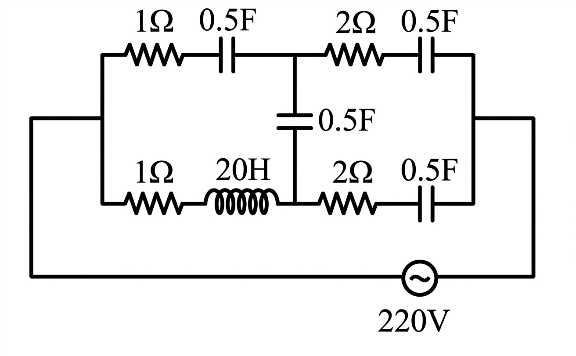

At very high frequencies, the effective impedance of the given circuit will be Ω Ω
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(2)
f is very large
is very large hence open circuit.
f is very large.
is very small, hence short circuit.

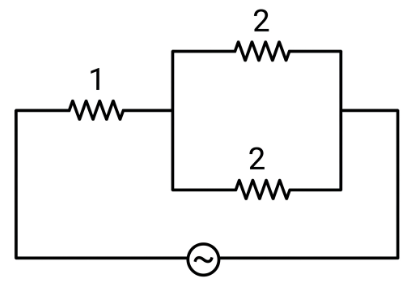

Final circuit
