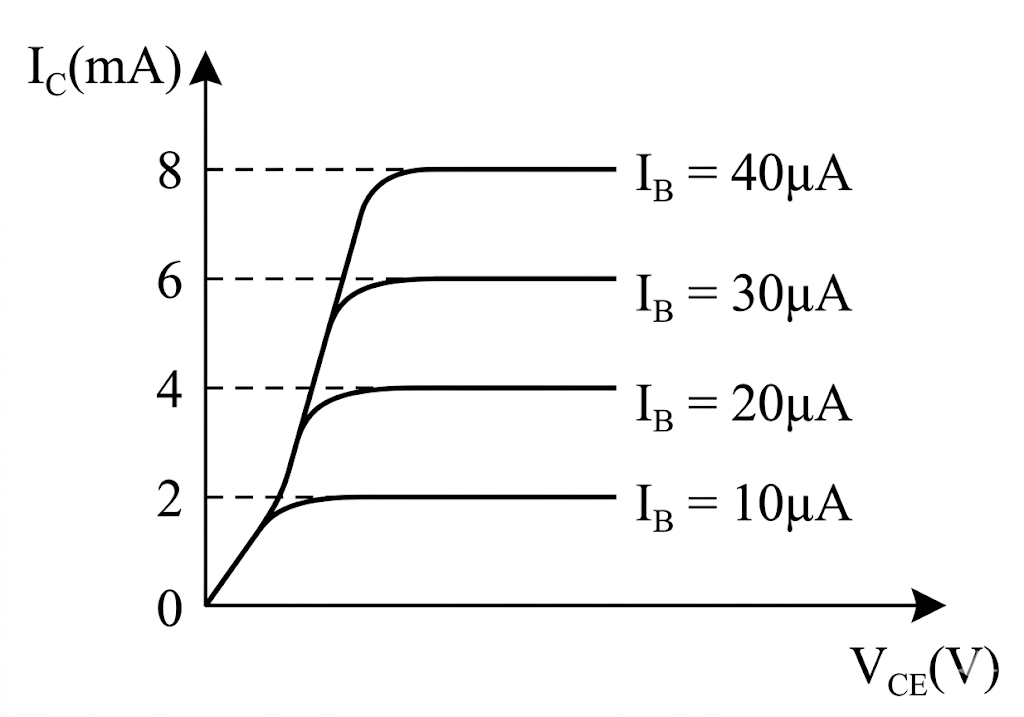

The typical output characteristics curve for a transistor working in the common-emitter configuration is shown in the figure.
The estimated current gain from the figure is
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(200)
