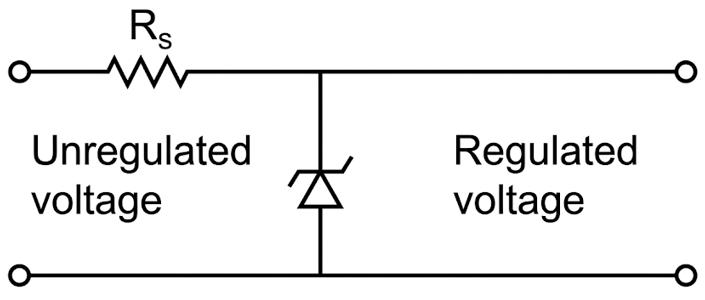

A Zener diode of power rating 2W is to be used as a voltage regulator. If the Zener diode has a breakdown of 10V and it has to regulate voltage fluctuated between 6V and 14V, the value of R s for safe operation should be
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(20)
When unregulated voltage is 14V voltage across Zener diode must be 10V So potential difference across resistor ΔV Rs = 4 V and P zener = 2 W
VI = 2
