A network of six identical capacitors, each of capacitance C is formed as shown below. The equivalent capacitance between the point A and B is
Text Solution
Verified by ExpertsThe correct answer is:
D

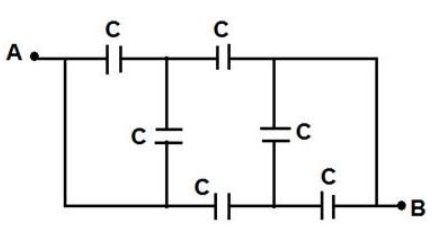

Given network can be drawn as shown

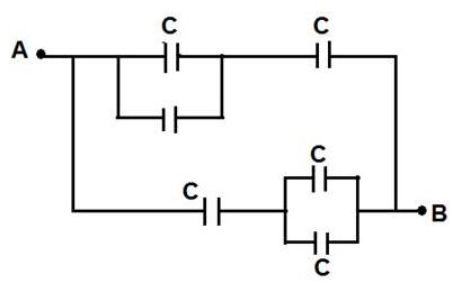

it can be redrawn as:

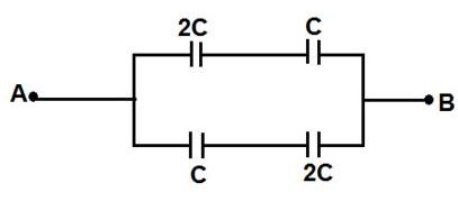

on further reduction, circuit becomes
for upper and lower half
are in series, hence equivalent is

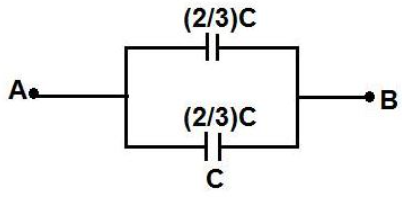

here (2/3)C & (2/3)C are in parallel. Hence
Final capacitance
