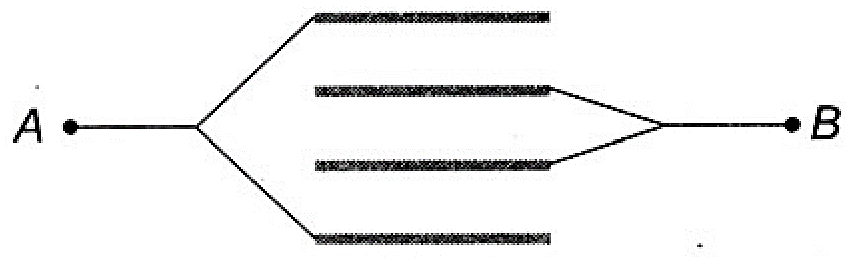

Four plates of equal area A are separated by equal distances d and are arranged as shown in the figure. The equivalent capacity is
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
A

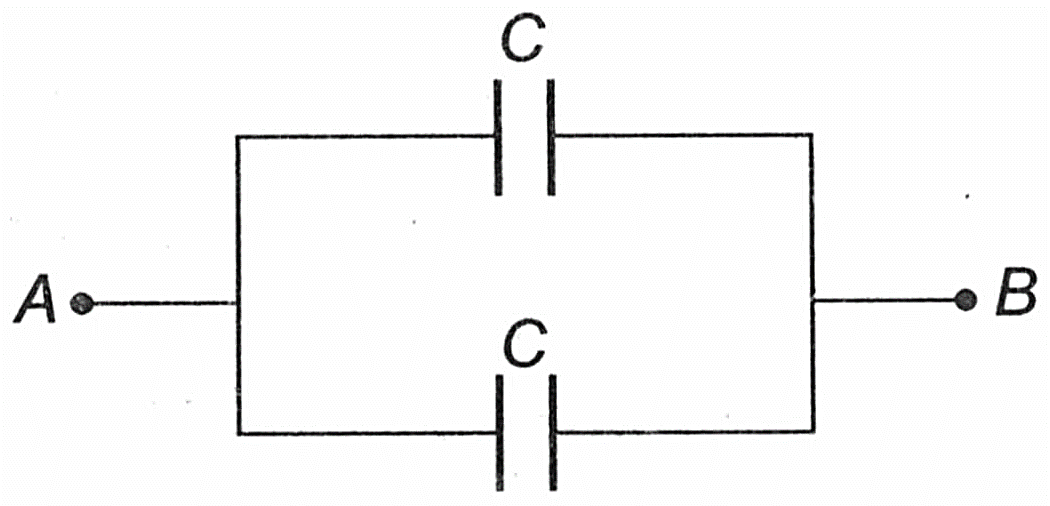

The given circuit is equivalent to a parallel combination two identical capacitors
Hence equivalent capacitance between A and B is
