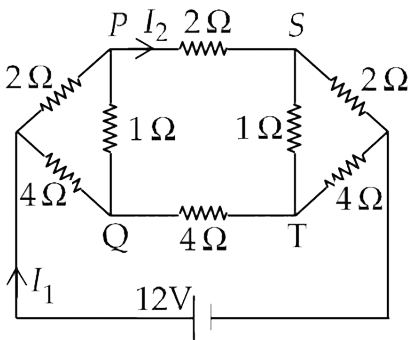

For the resistance network shown in the figure, choose the correct option(s).
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(a, b, c, d)
Due to input and output symmetry P and Q and S and T have same potential.
R eq =
= 4 Ω Ω
I 1 =
= 3A
I 2 =
I 2 = 2 A
V A – V S = 2 × 4 = 8V
V A – V T = 1 × 8 = 8V
V P = V Q ⇒ Current through PQ = 0…
V P = V Q ⇒ V Q > V S……
I 1 = 3A…….
I 2 = 2A…….
