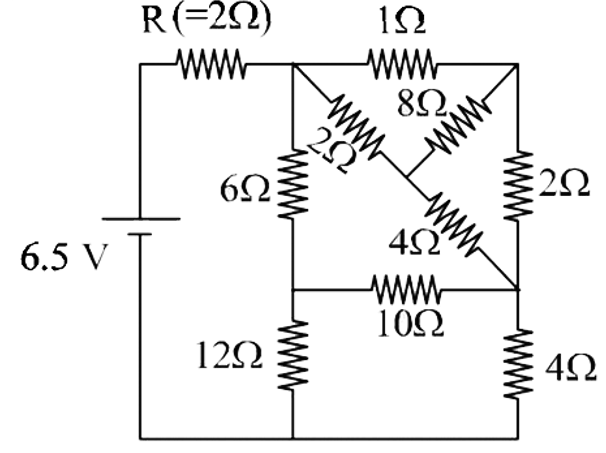

In the following circuit, the current through the resistor R (= 2 Ω Ω ) is I Amperes. The value of I is:
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(1)
Sol. The equivalent resistance of balanced wheatstone bridge is
The equivalent resistance of balanced wheatstone bridge is
