Match List I with List II
LIST I | LIST II | ||
(A) | Purely capacitive circuit | (I) | |
(B) | Purely inductive circuit | (II) | |
(C) | LCR series at resonance | (III) | |
(D) | LCR series circuit | (IV) |
Choose the correct answer from the options given below:
Text Solution
Verified by ExpertsThe correct answer is:
A
- V lags by
from I hence option (I) is correct.
- V lead by
from I hence option (IV) is correct
resonance
. Hence circuit is purely resistive so option (II) is correct

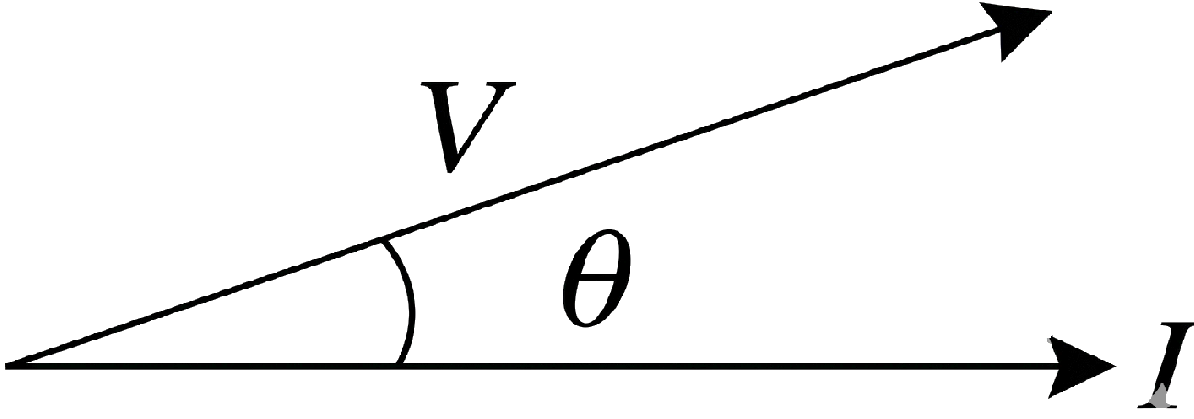

- In LCR series
is at some angle from
hence (III) is correct.
