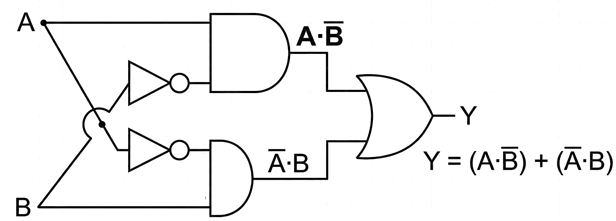

5 logic gates are connected as shown in the figure. If A and
are the inputs,
is the output then the truth table of the circuit is
0 | 0 | 0 |
1 | 0 | 0 |
0 | 1 | 0 |
1 | 1 | 0 |
0 | 0 | 1 |
1 | 0 | 0 |
0 | 1 | 0 |
1 | 1 | 1 |
0 | 0 | 0 |
1 | 0 | 1 |
0 | 1 | 1 |
1 | 1 | 1 |
0 | 0 | 1 |
1 | 0 | 1 |
0 | 1 | 1 |
1 | 1 | 1 |
Text Solution
Verified by ExpertsThe correct answer is:
A
Boolean expression for the combination of logic gates
The truth table of the circuit is
0 | 0 | 1 | 1 | 0 | 0 | 0 |
0 | 1 | 1 | 0 | 0 | 1 | 0 |
1 | 0 | 0 | 1 | 1 | 0 | 0 |
1 | 1 | 0 | 0 | 0 | 0 | 0 |
