Three rods of same dimensions are arranged as shown in figure they have thermal conductivities and . The points P and Q are maintained at different temperatures for the heat to flow at the same rate along PRQ and PQ then which of the following option is correct?

A

B

C

D

Text Solution

Verified by Experts

The correct answer is:

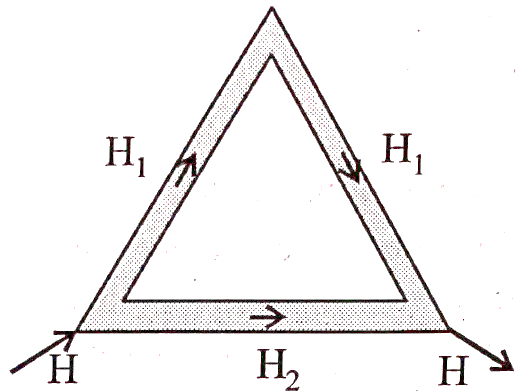

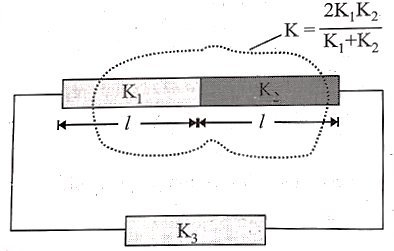

The given arrangement of rods can be redrawn as follows
