Physics Elasticity ( Mechanical Properties of Solids ) JEE Main 2026 MCQ (Single Correct)

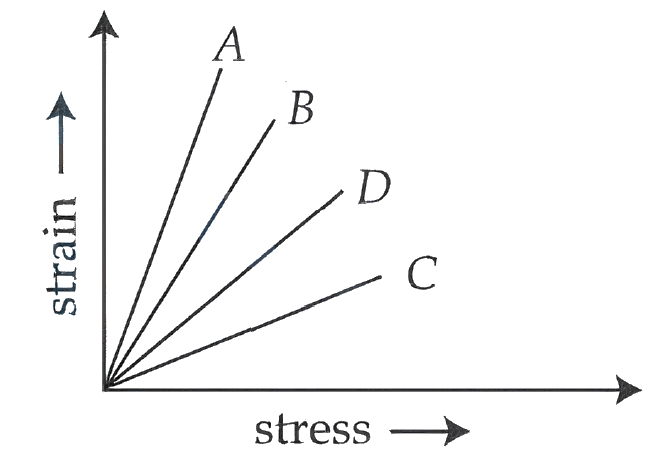

The strain-stress plot for materials and is shown in the figure. Which material has the largest Young's modulus?

A
B

C
D

Share this question

For Instagram sharing, use “Apps” on mobile or copy the link.

Text Solution

Verified by Experts
The correct answer is:
C

Young's modulus is defined as the ratio of stress to strain: .

In the given graph, the y -axis represents strain and the x -axis represents stress.
The slope of the line in a strain-stress graph is given by .
Therefore, .
To have the largest Young's modulus, the material must have the smallest slope in the strain-stress plot.
From the figure, line has the smallest angle with the stress axis ( x -axis), meaning it has the minimum slope.
Since , material has the largest Young's modulus.
