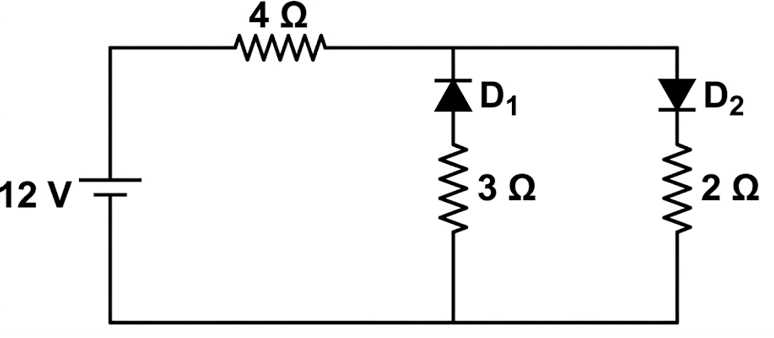

The circuit has two oppositely connected ideal diodes in parallel. What is the current flowing in the circuit?
Text Solution
Verified by ExpertsThe correct answer is:
D
In the given circuit diode
, is reverse biased while

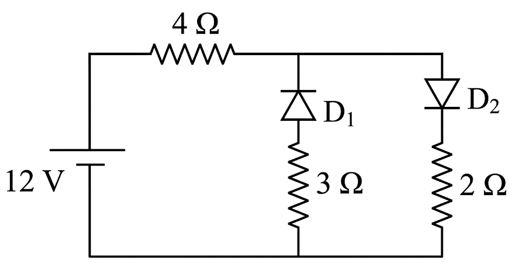

is forward biased, so the circuit can be redrawn as:
[ ∵ For ideal diodes, reverse biased means open and forward biased means short]
Apply KVL to get current flowing through the circuit
