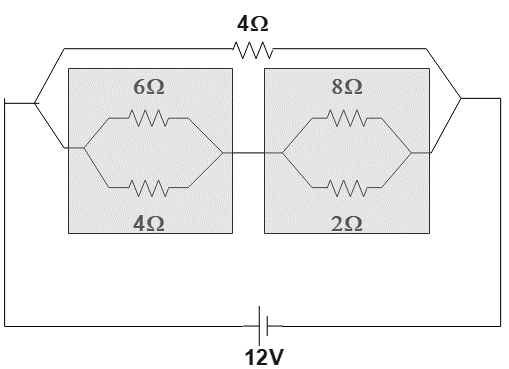

Compute the value of battery current in the circuit shown in figure. All the resistance are in ohm.
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(6A)
The equivalent circuit is as shown in figure.
