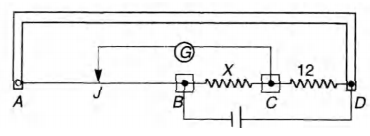

A thin uniform wire AB of length 1m, an unknown resistance X and a resistance of 12 Ω are connected by thick conducting strips, as shown in the figure. A battery and a galvanometer (with a sliding jockey connected to it) are also available. Connections are to be made to measure the unknown resistance X using the principle of Wheatstone bridge. Answer the following questions.

A
Are there positive and negative terminals on the galvanometer?
B
Copy the figure in your answer book and show the battery and the galvanometer (with jockey) connected at appropriate points.
C
After appropriate connections are made, it is found that no deflection takes place in the galvanometer when the sliding jockey touches the wire at a distance of 60 cm from A. Obtain the value of the resistance X.

Share this question

WhatsApp

For Instagram sharing, use “Apps” on mobile or copy the link.

Text Solution

Verified by Experts
The correct answer is:
CHECK THE SOLUTION.

Ans. There are no positive and negative terminals on the galvanometer because only zero deflection is needed.


If no deflection is taking place. Then, the Wheatstone's bridge is said to be balanced.
