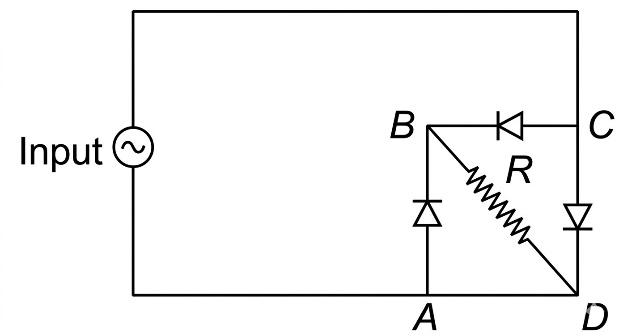

If the input is given between A and C, then the output at the ends of R will be
Text Solution
Verified by ExpertsThe correct answer is:
B
This is a bridge rectifier circuit. When AC input is applied between A and C, current flows through the load resistor R in the same direction during both half cycles.
