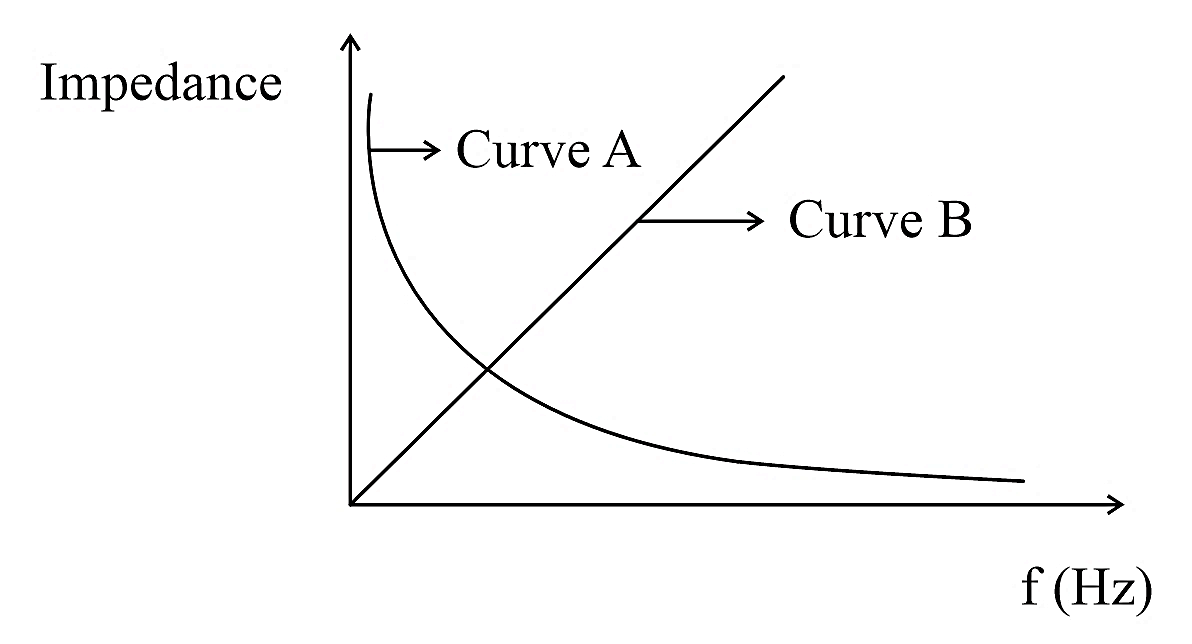

As per the given graph, choose the correct representation for curve A and curve B
{Where X C = Reactance or pure capacitive circuit connected with A.C. source
X L = Reactance of pure inductive circuit connected with A.C. source
R = Impedance of pure resistive circuit connected with A.C. source
Z = Impedance of the LCR series circuit}
Text Solution
Verified by ExpertsD
The formula to calculate the inductive reactance is
X L =
L ...(i)
The formula to calculate capacitive reactance is
…(ii)
As can be seen from equation (i), the inductive reactance varies directly with the frequency and equation (ii) indicates that capacitive reactance varies inversely with the frequency.
Hence, curve A represents the capacitive reactance and curve B represents the inductive reactance.
