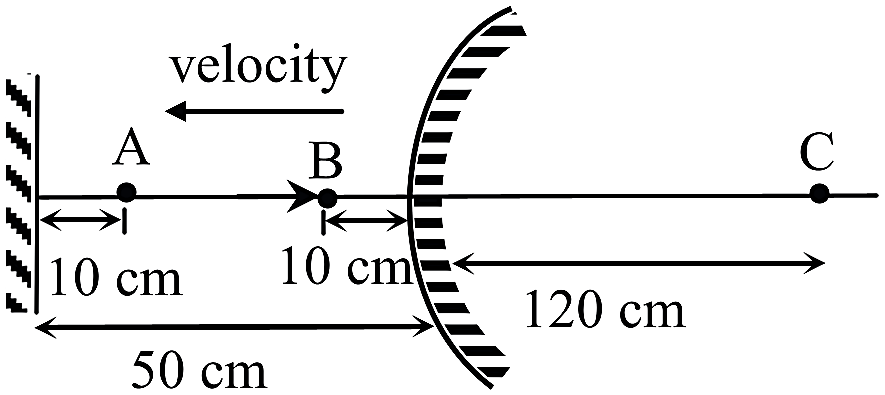

In the figure shown consider the first reflection at the plane mirror and second at the convex mirror. AB is object and AB is moving.
A
the second image is real, inverted of
magnification
magnification
B
the second image is virtual and erect with magnification
C
the second image moves towards the convex mirror
D
the second image moves away from the convex mirror
Text Solution
Verified by ExpertsThe correct answer is:
C

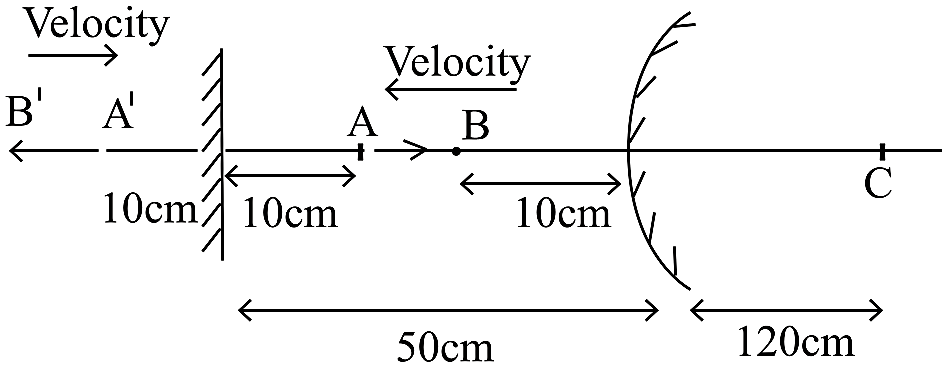

Image in the spherical mirror moves towards spherical mirror as image in plane mirror is moving towards spherical mirror.
