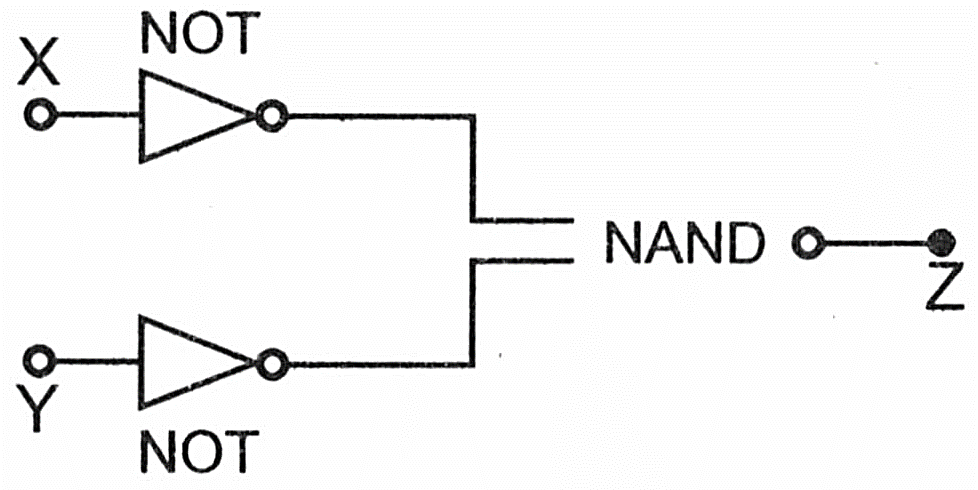

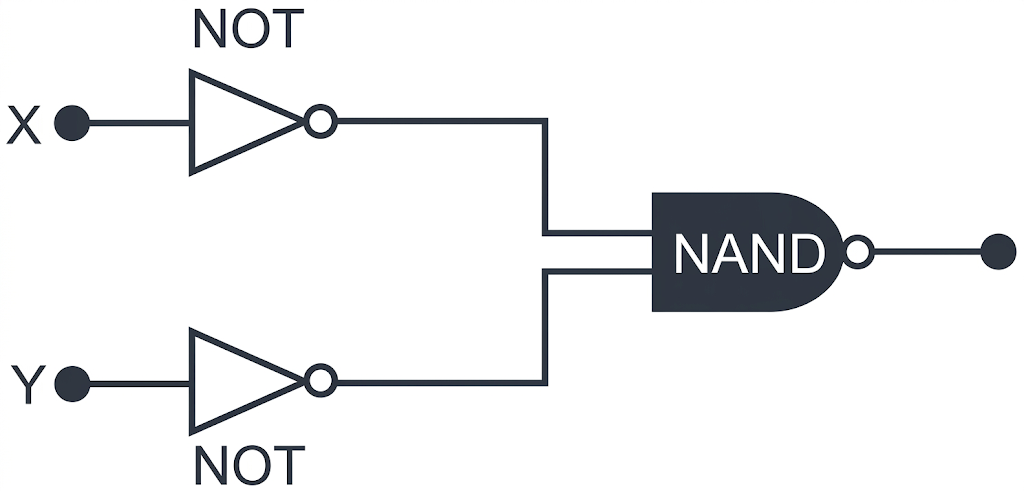

A digital system comprises a HAND gate with a NOT gate on each of its inputs as shown in figure. To which of the following single gates is this system equivalent?
Text Solution
Verified by ExpertsThe correct answer is:
B
Truth table for this digital system of logic gates is as stated below
It is obvious from the truth table that this system is equivalent to a single OR gate.
