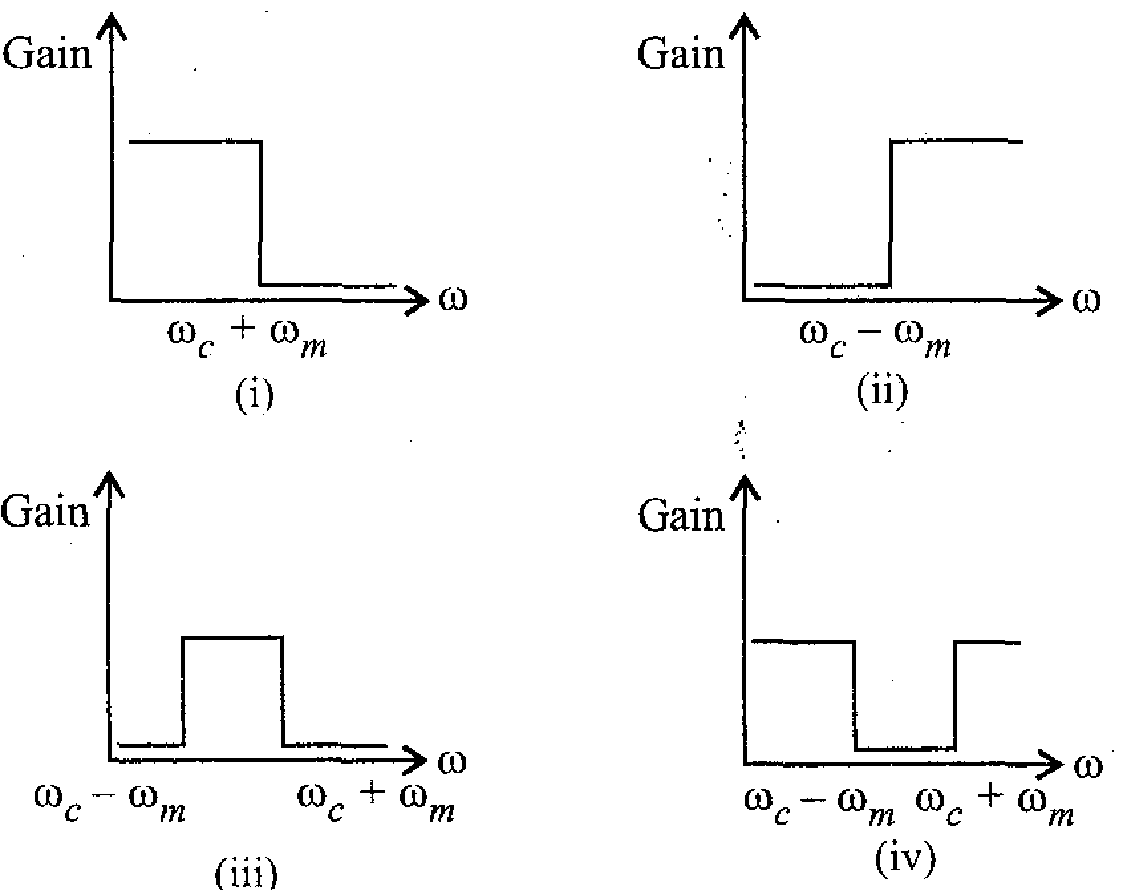

The frequency response curve (as shown in figure below) for the filter circuit used for production of AM wave should be.
Text Solution
Verified by ExpertsThe correct answer is:
D
: Bandwidth of AM wave should be
It is applicable for case (i), (ii) and (iii)
The case (iv) will reject the required signal for AM waves
